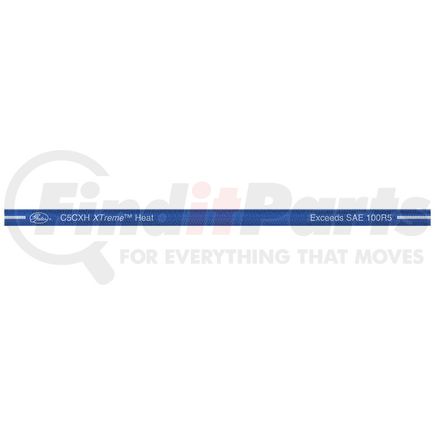

Gates 86997 - C5CXH Xtreme Heat Hose - SAE 100R5
$1,35799
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description

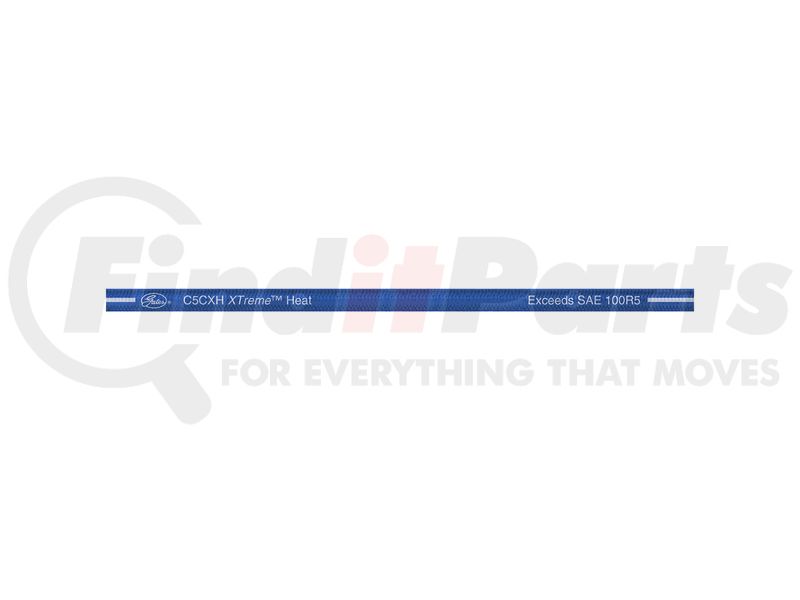

C5CXH Xtreme Heat Hose - SAE 100R5
Features & Benefits
- For use with C5 and C5X Field Attachable Couplings [G34 Series], and crimp options for MegaCrimp [G25 Series] and GlobalSpiral [G20 Series], depending on size
- Blue, oil and mildew resistant polyester/textile braid cover
- Meets the requirements of SAE 100R5 for hydraulic applications
- DOT FMVSS 106-74 Type AII and SAE J1402 Type AII for (-4 to -12)
- DOT FMVSS 106–74 Type AII and SAE J1402 Type AII for (-4 to -12)
- Temperature Range: -40 Deg. F to +302 Deg. F (-40 Deg. C to +150 Deg. C)
- NOTE: Federal law requires registration with the Department of Transportation for anyone producing air brake hose assemblies with swaged or crimped fittings
- NOTE: See Engineering and Technical Data Section of the Gates Hydraulic Catalog for compliance
Product Attributes
| Product Type | C5CXH XTreme Heat Hose - SAE 100R5 |
| Industrial Description | 16C5CXHX50FT |
| Type | Fleet Application & Maintenance Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 800 PS |
| Burst Pressure | 3200 PS |
| Temperature Rating | -40 Deg. F to +302 Deg. F (-40 Deg. C to +150 Deg. C) |
| Length | 50 FT |
| Dash Size | 16 |
| Inside Diameter | .875 IN |
| Outside Diameter | 1.23 IN |
| Bend Radius | 7.4 IN |

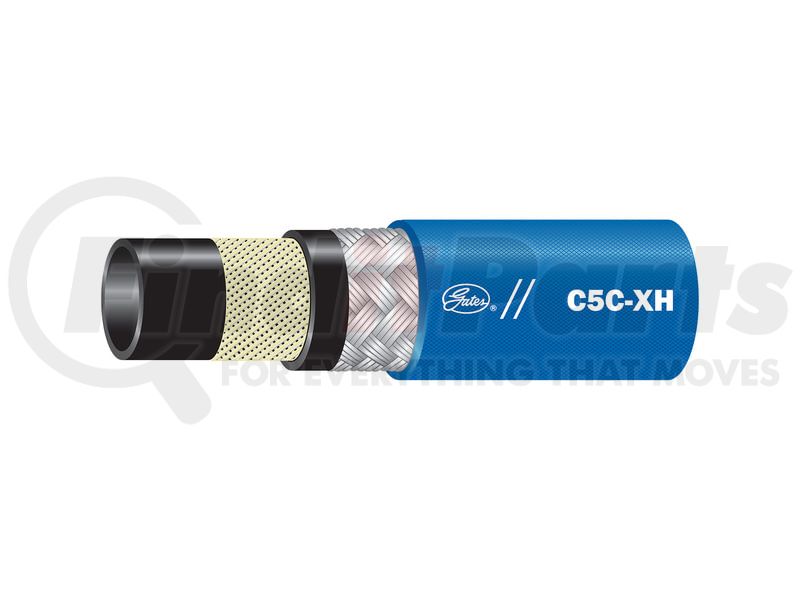

| Tube Description | Black, Oil & Heat Resistant, Synthetic Polymer Tube |
| Hose Material | CPE - Type J |
| Reinforcement Material | Braided High Tensile Wire & Textile |
| Cover Material | Polyester & Textile Braid |
| Cover Type | Oil & Mildew Resistant |
| Cover Color | Blue |
| Coupling Recommendation | C5 Field Attach, MegaCrimp |
| SAE Standard | 100R5 |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| Country of Origin (Primary) | MX |
| UPC | 00770075567332 |
| VMRS Code | 059032029 |
| UNSPSC | 40142000 |
