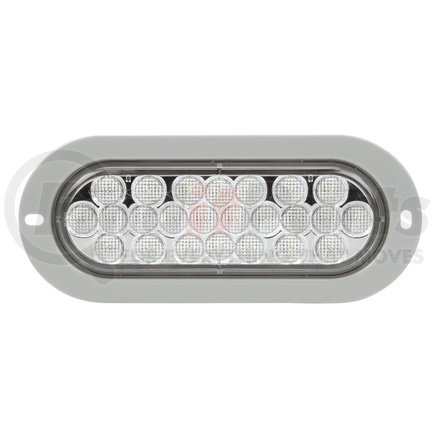

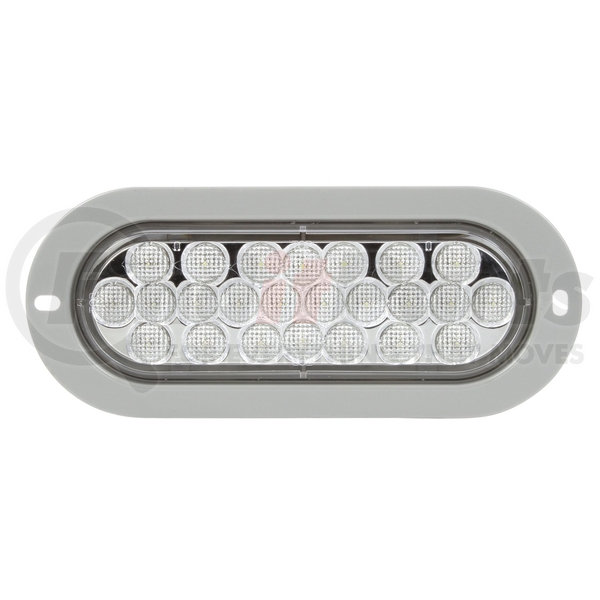

Truck-Lite 6063C3 - Led Signal Stat
- Part Number
- 6063C3
- Manufacturer
- TRUCK-LITE
- Description
-
Led Signal Stat
details
$7549
In stock
limited availability at this price!
. Learn more
TRUCK-LITE part description
Features and Benefits
- Housing and flange are molded together to form one piece
- Uses standard right angle PL-3 connection
- When properly mounted, exceeds FMVSS DOT requirements for back-up
- Unique LED array displays full pattern light output design
- Must be used as a two lamp system for back-up
- Designed with impact-resistant polycarbonate
- LEDs do not have a filament, therefore are not susceptible to shock and vibration damage major cause of failure for lamps with an incandescent bulb
- Epoxy encapsulated electronics prevents damage from moisture and corrosion
- 6063 can be legally mounted horizontally or vertically
- Lamp comes with Truck-Lite 2-Year Limited Warranty.
Technical Specifications
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Product Type | Back-Up Light |
| Packaging Type | Bulk |
| KIT (Y/N) | No |
| Series | Signal-Stat |
| Standards Met | (2)R |
| VMRS | 034-003-074 |
| Warranty | 2-Year |

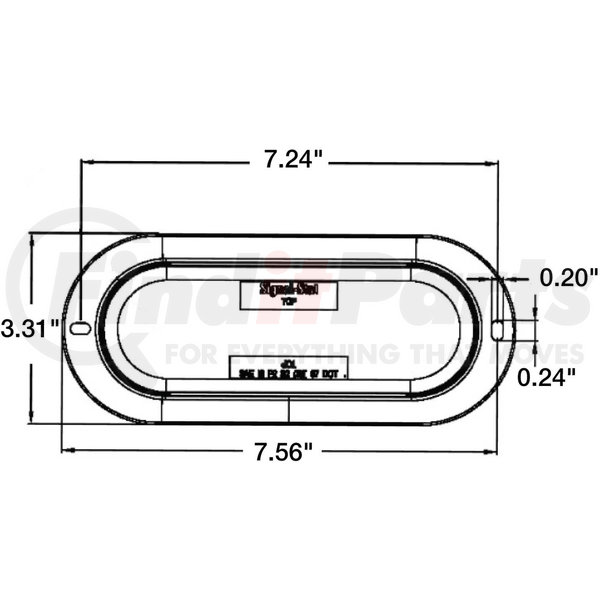

| Total Height_INH | 3.31 |
| Total Height_MMT | 84.07 |
| Total Depth_INH | 1.67 |
| Total Depth_MMT | 42.42 |
| Total Width_INH | 7.87 |
| Total Width_MMT | 199.9 |
| Plug Side One | No Plug |
| Lens Height_INH | 2.5 |
| Mount/Trim Material | Polycarbonate |
| Lens Shape | Oval |
| Lens Material | Polycarbonate |
| Lens Color | Clear |
| Sealed/Bulb Replaceable | Sealed |
| Voltage_VLT | 12 |
| Number of Diodes/Bulbs | 24 |
| Mounting Connector Diameter_INH | 2.5x7 |
| Lens Width_INH | 6 |
| Lighting Technology | LED |
| Diamond Shell (Y/N) | No |
| Plug Side Two | No Plug |
| Common Size | 2"x6" |
| Mount Type | Flange Mount |
| Mount/Trim Color | Gray |

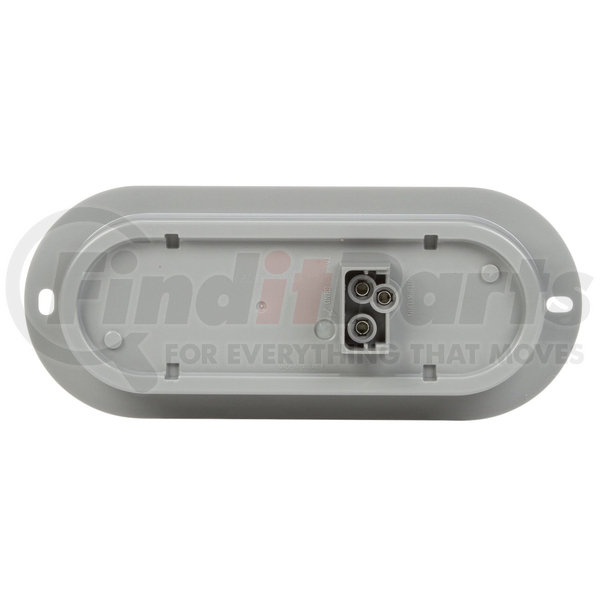

| Lamp Connection | PL-3 |
| Current_AMP | 0.15 |
| Housing Material | Polycarbonate |
Truck-Lite® is a world-renowned manufacturer of mirrors, heavy-duty forward and signal lighting, trailer harnesses, and other safety and visibility-enhancing products. Its main headquarters is located in Falconer, NY, and it maintains ten more facilities across North America and Europe. The company may have started small as a sealed lighting manufacturer in 1955. But it has grown tremendously over the years—in fact, it introduced a series of firsts including the first sealed lighting products, first LED S/T/T lamps, and first forward lighting. Being first in product development has sure paved the way for Truck-Lite to become a successful business today.
