HELLA part description
Product Description

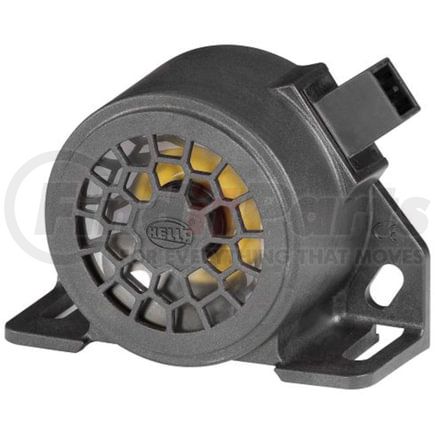

Back Up Alarm 107DB 12-24V
Features & Benefits
- With protection against reverse polarity and voltage points
Product Attributes
| Mounting Type | Bolted |
| Test Mark | SAE J994 (TYP B) |
| Quantity | 1 |
| Sound Level [dB(A)] | 107 |
| Assy./disassy. By Qualified Personnel Required! | . |
| Voltage to [V] | 24 |
| Plug Type | AMP |
| Voltage from [V] | 12 |
| Width [mm] | 43 |
| Frequency Range [hz] | 1200 |
| Length [mm] | 101 |
| Height [mm] | 74 |
| Frequency Range From [hz] | 1200 |
| Single Includes | Reverse alarm, Step-by-Step Mounting Instructions |
| Temperature Range From [°c] | -40 |
| Frequency Range To [hz] | 1300 |
| Homologation | ECE-R10 |
| Voltage [V] | 12-24 |
| Temperature Range To [°c] | 85 |
| Protection | IP67 |
Additional Information
| Harmonized Tariff Code (HTS) | 8512300020 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | US |
| UPC | 04082300155372 |
Part Interchanges
HELLA 009148021 Cross Reference
We have 2 alternatives for the 009148021 by HELLA:
