STANDARD IGNITION CBS-1117 Part Description
Manufacturer
Product Description

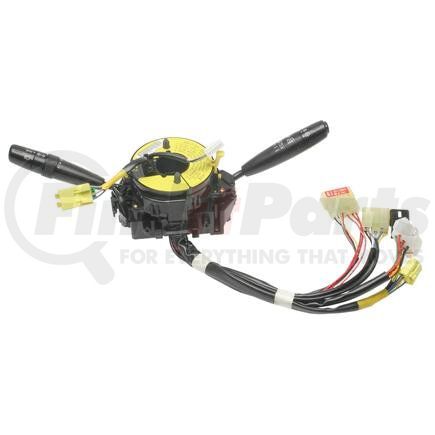

Multi Function Column Switch
Features & Benefits
- Robust design and high grade materials meet the stringent demands of today's service professional
- Copper alloy conductors ensure superior electrical conductivity with low resistive losses
- Our parts are 100% tested to verify both mechanical and electrical switching performance.
- Decades of research to meet all of your needs
- As a global manufacturer of original equipment ignition products, we maintain complete quality control throughout the manufacturing process from componentry to finished product
STANDARD IGNITION CBS-1117 Specifications
Product Attributes
| Attachment Method | Bolt On |
| Color/Finish | Black, White,Yellow |
| Connector Gender | Female; Male |
| Connector Quantity | 7 |
| Connector Shape | Rectangular |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Finish | Plastic |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Hardware Included | No |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Lighting Controls Included | Main light operator; High Beams; Headlights |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 5 |
| Number Of Wiper Delay Settings | 1 |
| Number Of Wiper Speed Settings | 3 |
| Rear Window Washer Spray Included | Yes |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male; Female |
| Terminal Quantity | 31 |
| Terminal Type | Blade |
| Turn Signal Control Included | Turn Signal Control |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | Yes |
| Windshield Wiper Delay Setting Inc | Yes |
| Windshield Wiper Speed Setting Inc | Yes |
| Wiper Control Options Included | Windshield on/off; Rear on/off; Mist; Rear Mist |
| Wire Length (in) | 15 |
| Wire Length (mm) | 381 |
| Wire Quantity | 36 |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (HTS) | 8536509065 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00707390081687 |
STANDARD IGNITION CBS-1117 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 201-2180 |
| Echlin | DL6516 |
| BWD | S14303 |
| Duralast | SW2605, SW5516 |
| Subaru | 83111AC840, 83111AC841, 83111AC843 |
| Airtex | 1S2422 |
| Import Direct | 18-1198 |
| BWD Intermotor | S14303 |
| CARQUEST Premium By WELLS | 53-16590, 53-64932 |
STANDARD IGNITION CBS-1117 Fits Vehicles
- Subaru Legacy (1994-1995)
