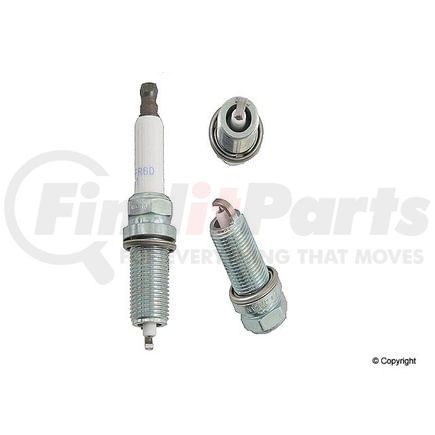

NGK Spark Plugs ILZFR6D11 - NGK Laser Iridium Spark Plug
- Part Number
- ILZFR6D11
- Manufacturer
- NGK SPARK PLUGS
- Description
-
NGK Laser Iridium Spark Plug
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
NGK SPARK PLUGS part description
Product Description
NGK Laser Iridium Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire iridium alloy center electrode provides consistent performance
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Best for vehicles with OE fine wire iridium alloy plugs
Product Attributes
| Stock Number | 1208 |
| Part Number | ILZFR6D11 |
| Short Style Spark Plug | No |
| Service Number | ILZFR6D11 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Performance |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | .044 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 1.99 IN |
| Manufacturer Heat Range | 6 |
| Seat Type | Flat |
| Reach | 1.043 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Platinum |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.20 IN |
| Center Electrode Design | Fine Wire |
| Washer Type | Crush |
| Center Electrode Projection | Long Projection |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295112083 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
Part Interchanges
Fits Vehicles
- BMW X5 (2007)
- BMW X3 (2007)
- BMW 328xi (2007)
- BMW 328i (2007)
- BMW 323i (2006-2007)
- BMW Z4 (2006-2007)
- BMW 325xi (2006)
- BMW 330xi (2006)
- BMW 530xi (2006-2007)
- BMW 525i (2006-2007)
- BMW 525xi (2006-2007)
- BMW 530i (2006-2007)
- BMW 325i (2006)
- BMW 330i (2006)
