Sealed Power 1110P 30 - Sealed Power 1110P 30 Engine Piston Set
- Part Number
- 1110P 30
- Manufacturer
- SEALED POWER
- Description
-

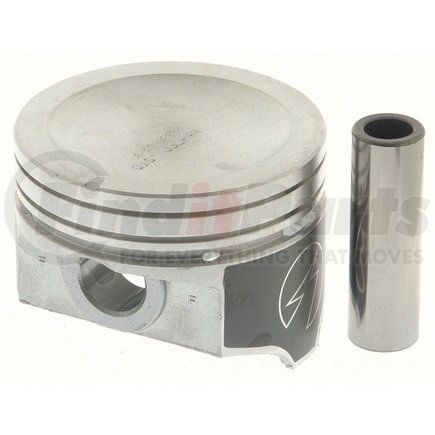

Sealed Power 1110P 30 Engine Piston Set
details
$42594
Package Price for 6 Units
@ $70.99 per unit
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
SEALED POWER part description
Product Description
Engine Piston Set
Features & Benefits
- Cast with FM132 Eutectic proprietary alloy
- Performance & dependability of original equipment pistons
- High quality aluminum
- Controlled casting & machining provides reliability, durability & long life
- Up-tilt ring grooves improve piston to ring sealing
- Provides great blow-by control
Product Attributes
| Oversized | Yes |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Piston Pin Outside Diameter | 0.9397 IN |
| Piston Head Type | Recessed |
| Assembly Lubricant Included | No |
| Bore Diameter | 3.7500 IN |
| Piston Material | Cast Aluminum |
| Compression Height | 1.835 IN |
| Head Illustration | 28 |
| Head Type | Recessed Head .227 deep x 3.050 dia. - 8.4:1 C.R. |
| Minimum Clearance | 0.001 @ bottom of skirt |
| Oversized Amount | 0.030 IN |
| Part Description | Engine Piston |
| Pin Offset (Inch) | 0.04 |
| Bore Diameter | 95.3 MM |
| Grade Type | Premium |
| Piston Pin Outside Diameter | 23.868 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00614046727984 |
Fits Vehicles
- Buick Skylark (1964-1967)
- Jeep Universal Truck (1966-1969)
- Buick Sportwagon (1964)
- Buick Special (1964-1967)
- Oldsmobile F85 (1964-1965)
- Jeep Jeepster (1966-1971)
- Jeep DJ6 (1966-1968)
- Jeep DJ5 (1966-1971)
- Jeep Dispatcher (1966-1969)
- Jeep Commando (1966-1971)
- Jeep CJ6 (1966-1971)
- Jeep CJ5 (1966-1971)
- Jeep CJ3 (1966)
