HALDEX part description

Product Description

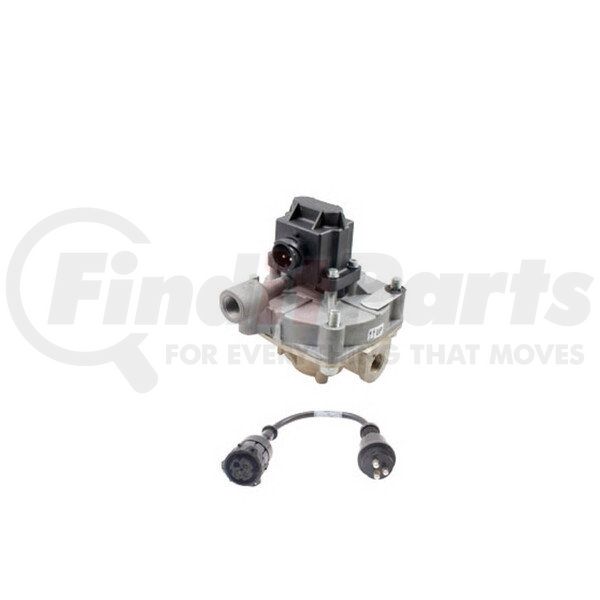

Valve ABS ,Sol Relay Assembly 12V

Application Summary

Frame mount valve may be used in both applications by re-positioning cover. ECU and bracket may need to be transferred from existing valve. Pre 2009 need to purchase adapter cable AL919346.,Production part number is embossed on metal tag.

Features & Benefits

  • For the production part number, check the metal tag
  • Can be mounted on the reservoir
  • Reposition the cover if using the frame mount valves in both applications
  • ECU and bracket may need to be transferred from the existing valve
  • Engineered to meet or exceed OEM specifications
  • Guaranteed to last longer in service

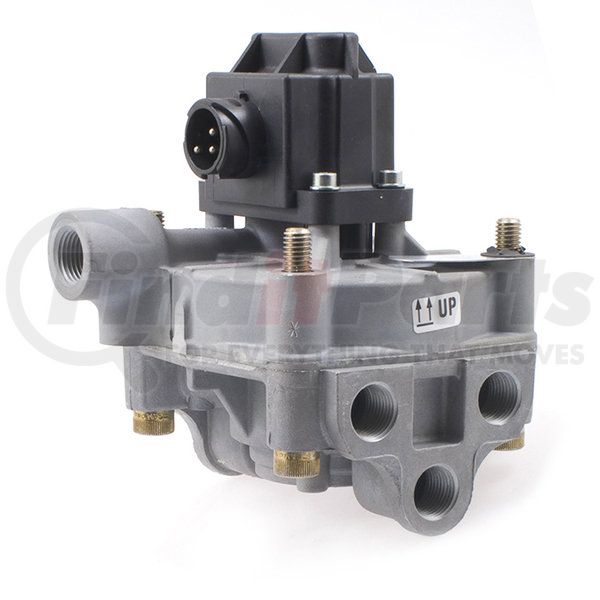

Haldex ABS Valve

Restore the performance of your truck’s anti-lock braking system with the Haldex ABS valve. Manufactured by a brand with over 100 years of engineering expertise, this TRS dual modulator valve offers compatibility and like-new performance as it’s made following strict OEM standards.

Product Attributes

Control Port Diameter 3/8 in.
Delivery Port Diameter 2 @ 3/8 in.
Freight Class 70
Mounting Location Frame
Opening Pressure 4.0 PSI
Reservoir Port Diameter 1/2 in.
Spring Brake Port Diameter 3/8 in.
Supply Port Diameter 3/8 in.
Voltage 12V

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 8481200060
Harmonized Tariff Code (HTS) 8481200060
Remanufactured Part N
Warranty Distance 100000
Warranty Distance UOM MI
Warranty Special 36 MO, 200,000 MI=ABS - Antilock Braking Systems Including Haldex TRS (Valves, ECUs and Looms Only). 12 MO, 100,000 MI= All Other ABS - Antilock Braking Systems Components. See L20221W.pdf for warranty details
Warranty Time 12
Warranty Time UOM MO
UPC 00767653082905
VMRS Code 013011107

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.

HALDEX AL364045 Cross Reference

We have 2 alternatives for the AL364045 by HALDEX:
