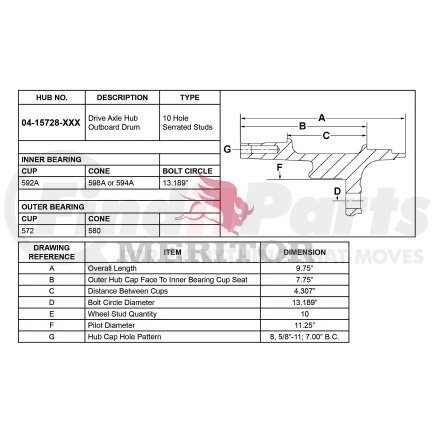

MERITOR part description

MERITOR GENUINE BRAKE HUB

Marketing Group: Drive
Brake Type: Drum
ABS Capable (on hub): Y
Axle Series: R
ABS Ring Number: 09-001937
Base Part Number: 15728
Oil Seal: A1205Q2487
GAWR (lb): 26000
Outer Cup: 572
Hub Type: Rear, Drive
Inner Bearing Surface (IBS) to Mounting Face: 1.19 in.
ABS Pilot Diameter: 6.775/6.778 in.
Wheel Stud Pattern: 10
Inner Cone: 594A
Drum Bolt Pattern: 10
Wheel Stud Bolt Circle Diameter: 13.189 in.
Wheel Stud Hole: .904/.906 in.
IBS to OBS: 4.327/4.287 in.
IBS to Outer Surface: 7.767/7.727 in.
Inner Cup: 592A
Drum Bolt Size: .904/.906 in.
Outer Cone: 580
Drum Bolt Circle Diameter: 13.189 in.
DriveStud Bolt Circle Dia: 7.00 in.
Drive Stud Pattern: 8
Drive Stud Thread: 5/8-11 UNC-3B
Drive Flange Stud: R005800
Drum Pilot Diameter: 11.250/11.247 in.
Flange Outer Diameter: 14.675 in.
Wheel Pilot Diameter: 11.055/11.047 in.
Wheel Stud: 09-001989

Meritor Brake Hub

The Meritor brake hub delivers higher payload capacity and lower maintenance costs for heavy duty truck and trailer applications. It is compatible with most popular wheel-end configurations.

Features & Benefits

  • Meets or exceeds OE specifications and complies with federal stopping distance requirements
  • Advanced machining technology reduces welded-on weight and improves balance
  • Built with state-of-the-art materials and manufacturing processes for improved reliability and wear resistance
  • Lighter than typical brake hubs for tractor/trailer combinations without sacrificing structural integrity

Meritor®, whose roots could be traced back to 1909, is backed by over 100 years of industry experience plus a massive portfolio of products for various industries. In 1998, it made several acquisitions, including Volvo Trucks' heavy vehicle manufacturing operation in Sweden, Euclid Industries, and Lucas Varity's Heavy Vehicle Braking Systems division. Such investments solidify Meritor's position as the leading global supplier of brakes, axles, drivelines, transmissions, suspensions, tire inflations systems, and a whole lot of parts, hardware, and accessories for the automotive, truck, trailer, rail cars, bus and coach, and many other applications. Its "Run with the Bull" global brand identity further strengthens its commitment to provide the industry with durable products, unparalleled service and support, and continuous innovation.
