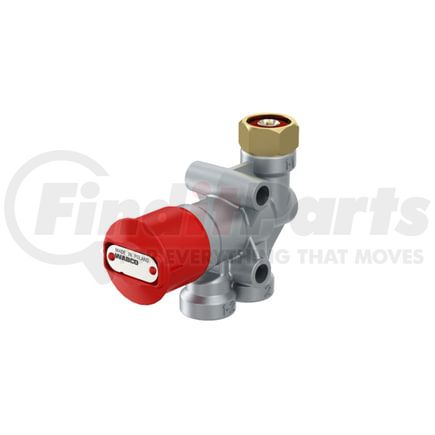

WABCO 9630060030 - Air Brake Quick Release Valve
$59849
MSRP: $716.60
Save: $118.11
Limited Availability
. Learn more
WABCO part description
Air Brake Quick Release Valve
Product Attributes
| Calculated Volume (dm³) | 0.2814 |
| Weight | 0.364 |
| Max. operating pressure | 8.5 bar |
| Mounting | 2x Ø 8.5 mm |
| Temperature Range | -40°C to +80°C |
| Size | 88.5 x 79.5 x 40 |
| Nominal Diameter | 6.0 mm |
| Port threads | M16 x 1.5 |
| Port Thread 1-2 | M16 x 1.5 |
| Type | Release valve |
| Color | Knob - Red |
| Port thread 2 | M16 x 1.5 |
| Distance Between Holes | 37 mm |
| Port thread 3 | Flap Exhaust |
WABCO 9630060030 Cross Reference
We have 3 alternatives for the 9630060030 by WABCO:
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
