75705-01 by COLE HERSEE - 75705-01 - Rotary Reversing Switches Series
75705-01 by COLE HERSEE - 75705-01 - Rotary Reversing Switches Series

COLE HERSEE 75705-01 - 75705-01 - Rotary Reversing Switches Series

Part Number
75705-01
Manufacturer
COLE HERSEE
Description

75705-01 - Rotary Reversing Switches Series

details

$47.49

3 day lead time

This part has limited availability. We will confirm your order and notify you within 1 business day.
New! No hassle Return Policy details
Free shipping on orders over $200 details
This item will ship about 3 days after the date of purchase
Pay over 3-12 months with Affirm Logo. Learn more
Minus Plus

COLE HERSEE part description

California Proposition 65 Warning California Proposition 65 Warning

WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)

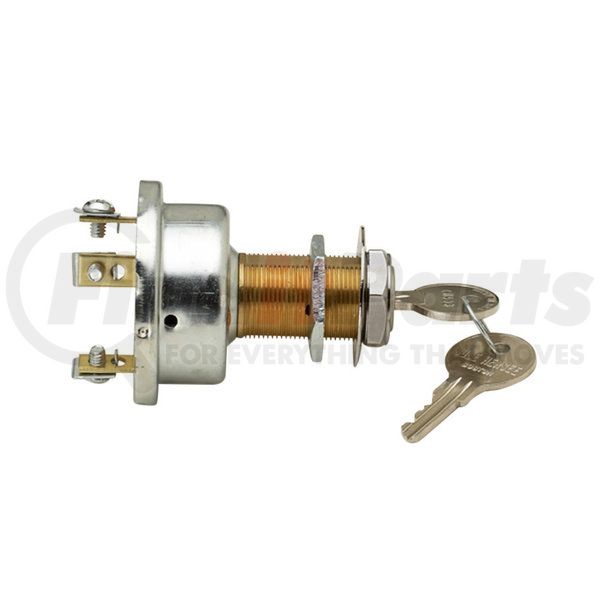

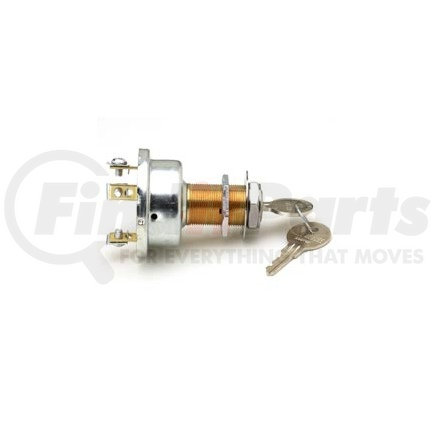

Cole Hersee Rotary & Headlamp Switches include many circuitries and styles for lighting, ignition, panel dimming, windshield wiper motrol control, reversing and fuel tank selection and similar applications.
Rheostat Switches provide variable intensity control of defroster fan motors and heater blowers.

All products listed in this section can be found in Section D of the Cole Hersee D-275 CATALOG.
  • Reversing Switch - can replace toggles or rocker switches.
  • 10A at 12V DC.
  • Mom On1 – Off – Mom On2,
  • Spring return to Off from both positions.
  • Key actuatorThe part of a switch assembly used by the operator that causes switch contacts to engage or disengage. Actuators include pushbuttons, levers, slides, keylocks, rockers and toggles. Cole Hersee switches offer you many ways of performing the same electrical function. with coded tumbler lock.
  • Mounting stem 13/16”-24 thread.
  • Internal O-ring seal.
  • Three screw terminals.
  • Plated steel case.
Description Universal Rotary Switch
Terminals 3 Screw
Actuator Coded Tumbler Lock, 2 Keys
Sealed terminal insulator No
O-Ring seal in stem Yes
Ground terminal No
Mounting stem 13/16" - 24 X 1/3/8"
Number of positions 3
Positions Momentary On - Off - Momentary On
Ignition/Run Mom On 10A
Start Mom On 10A
Contacts Bronze
Case material Plated Steel
Mounting panel thickness 13/16" (20.64MM)
Replacement key number 83379
Removable key Key removable in Off position only. Spring return to Off.

Cole Hersee Reversing Rotary Switch

The Cole Hersee reversing rotary switch provides flexibility and reliable performance when you need it. These switches enable motors to operate in both forward and reverse, allowing for a wide range of motions.

Features & Benefits

  • Silver-plated contacts provide exceptional corrosion protection and optimum conductivity
  • Durable plated steel housing protects internal components from the elements
  • Performance-tested to withstand prolonged exposure to harsh environments
  • Suitable for use in construction, agriculture, materials handling, transit, and commercial vehicles and equipment

COLE HERSEE 75705-01 Cross Reference

We have 1 alternatives for the 75705-01 by COLE HERSEE:

Cole Hersee® is highly valued in the heavy duty truck industry. It is a leading manufacturer of heavy-duty battery master switches that are widely used as OE equipment by leading heavy-duty vehicle manufacturers. These switches are essential safety components for trucks as they help prevent theft, tampering, electrical fires, and battery drain. Founded in 1924, Cole Hersee is committed to improving vehicle safety by partnering with ECCO Safety Group Australia (ESGA) to establish and implement safety standards for trucks that drive onto mining sites. Its products are also manufactured in its ISO 9001:2008-certified facility and undergo strict testing to ensure safety and reliability.
