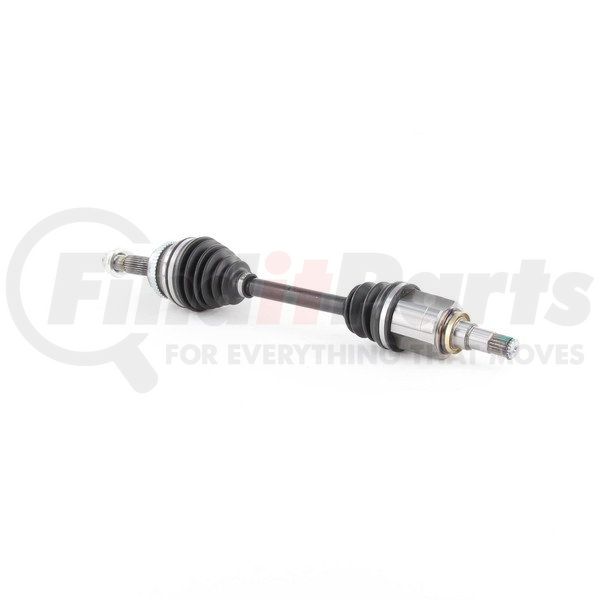

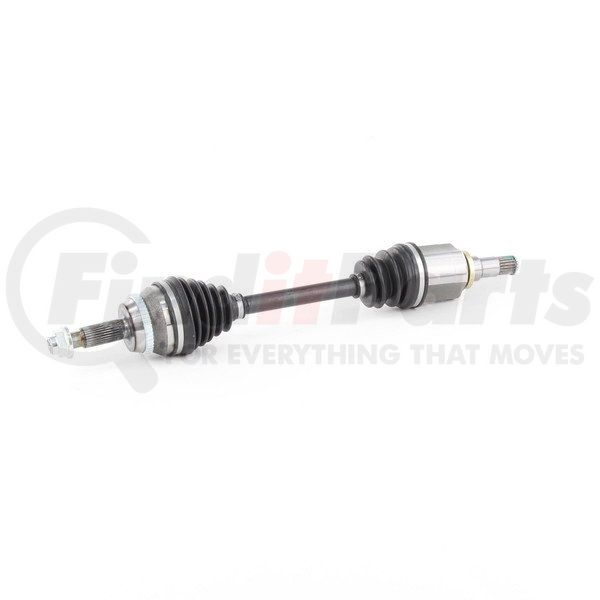

TrakMotive TO-8094 - CV Axle Shaft
- Part Number
- TO-8094
- Manufacturer
- TRAKMOTIVE
- Description
-
CV Axle Shaft
details
$10649
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
TRAKMOTIVE part description
Product Description
CV Axle Shaft
Product Attributes
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | N/A |
| Axle Bolt Length (mm) | N/A |
| Axle Bolt Thread Size | N/A |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.5 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22x1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | N/A |
| Inboard Bolt Head Size (mm) | N/A |
| Inboard Bolt Head Type | N/A |
| Inboard Bolt Length (in) | N/A |
| Inboard Bolt Length (mm) | N/A |
| Inboard Bolt Thread Size | N/A |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 20 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 26 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.34 |
| Overall Compressed Length (mm) | 644 |
| Axle Nut Socket Size | 32 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Outboard Joint Boot Material | Neoprene |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00844084080943 |
Part Interchanges
- EMPI 80-6271
- Carquest 411714
- Carquest 801714
- USA Industries 7097229
- USA Industries AX-9722
- USA Industries AX-97229
- Diversified Shafts Solutions 4283N
- Drive Tech America TO-2016A
- Fenwick CV2397
- CARDONE Reman 60-5227
- CARDONE Reman 60-5228
- CARDONE Reman 66-5228
- IMC 40751087
- Carquest Premium AC NCV10553
- OEM Part Number 4342001070
- OEM Part Number 88969958
- Altrom Group 652450
- ODM TO-8-8635A
- TrakMotive TO-8094
- ProTech PO10506
- 411714
- NCV10553
- 70610
- MX-19772S
- 329094
Fits Vehicles
- Toyota Matrix (2003-2008)
- Pontiac Vibe (2003-2008)
