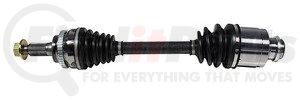

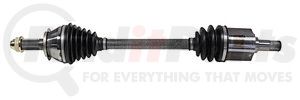

TrakMotive GM-8036 - CV Axle Shaft
- Part Number
- GM-8036
- Manufacturer
- TRAKMOTIVE
- Description
-
CV Axle Shaft
details
$10749
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
TRAKMOTIVE part description
Product Description
CV Axle Shaft
Product Attributes
| ABS Ring Tooth Count | 47 |
| ABS Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | N/A |
| Axle Bolt Length (mm) | N/A |
| Axle Bolt Thread Size | N/A |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .86 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.43 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24x2 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | N/A |
| Inboard Bolt Head Size (mm) | N/A |
| Inboard Bolt Head Type | N/A |
| Inboard Bolt Length (in) | N/A |
| Inboard Bolt Length (mm) | N/A |
| Inboard Bolt Thread Size | N/A |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.54 |
| Overall Compressed Length (mm) | 598 |
| Axle Nut Socket Size | 36 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Outboard Joint Boot Material | Neoprene |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00844084030368 |
Part Interchanges
- ARC 80-2593
- ARC 80-5089
- EMPI 80-1393
- Car Components Technologies (CCT) 8526
- Mevotech CV5249
- Carquest 410341
- Carquest 800341
- USA Industries 7067219
- USA Industries AX-67119
- USA Industries AX-6721
- USA Industries AX-67219
- Prestige Autotech 1258
- American Remanufactured 40-16206S
- Drive Tech America GM-6206A
- Fenwick CV3003
- CARDONE Reman 60-1179
- CARDONE Reman 60-1264
- CARDONE Reman 66-1264
- OEM Part Number 26040719
- OEM Part Number 26064129
- OEM Part Number 26082885
- ODM GC-8-8558A
- TrakMotive GM-8036
- 410341
- NCV10542
- 70510
- 179036
Fits Vehicles
- Pontiac Grand Prix (1991-1996)
- Oldsmobile Cutlass Supreme (1991-1997)
- Chevrolet Monte Carlo (1995-1999)
- Chevrolet Lumina (1991-2001)
- Buick Regal (1993-1996)
