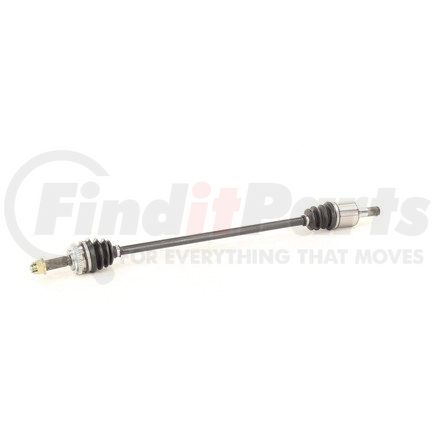

TrakMotive HY-8108 - CV Axle Shaft
- Part Number
- HY-8108
- Manufacturer
- TRAKMOTIVE
- Description
-
CV Axle Shaft
details
$6649
MSRP: $95.49
Save: $29.00
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
TRAKMOTIVE part description
Product Description
CV Axle Shaft
Product Attributes
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | N/A |
| Axle Bolt Length (mm) | N/A |
| Axle Bolt Thread Size | N/A |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 27 |
| Axle Nut Hex Size (in) | 1.33 |
| Axle Nut Hex Size (mm) | 34 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.56 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22x1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | N/A |
| Inboard Bolt Head Size (mm) | N/A |
| Inboard Bolt Head Type | N/A |
| Inboard Bolt Length (in) | N/A |
| Inboard Bolt Length (mm) | N/A |
| Inboard Bolt Thread Size | N/A |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 25 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 36.42 |
| Overall Compressed Length (mm) | 925 |
| Axle Nut Socket Size | 34 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Outboard Joint Boot Material | Neoprene |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00844084003140 |
Part Interchanges
- ARC 80-3030
- ARC 80-3370
- EMPI 80-3030
- EMPI 80-3370
- USA Industries 7045569
- USA Industries AX-4556
- USA Industries AX-45569
- USA Industries AX-8854
- Diversified Shafts Solutions 3133N
- Drive Tech America HY-2278A
- CARDONE Reman 60-3449
- CARDONE Reman 60-3586
- CARDONE Reman 66-3449
- IMC 40723040
- Carquest Premium AC NCV75526
- Carquest Premium AC NCV75531
- OEM Part Number 495001G150
- OEM Part Number 495001G151
- ODM HY-8-8570A
- TrakMotive HY-8108
- ProTech HY10519
- NCV75526
- 80-3030
- NCV75529
- 87104
- 199108
Fits Vehicles
- Dodge Attitude (2006-2011)
- Hyundai Accent (2006-2011)
- Kia Rio5 (2006-2011)
- Kia Rio (2006-2012)
