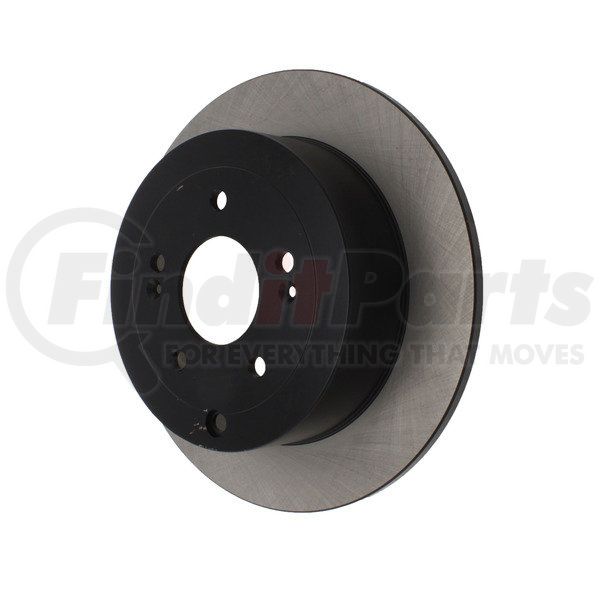

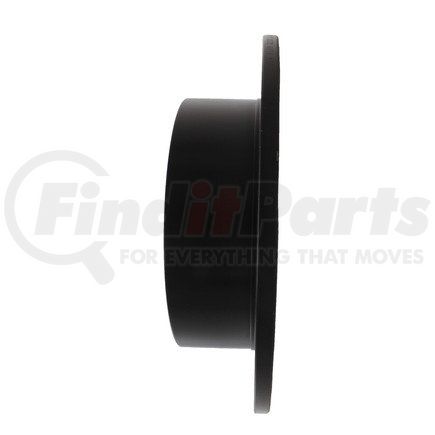

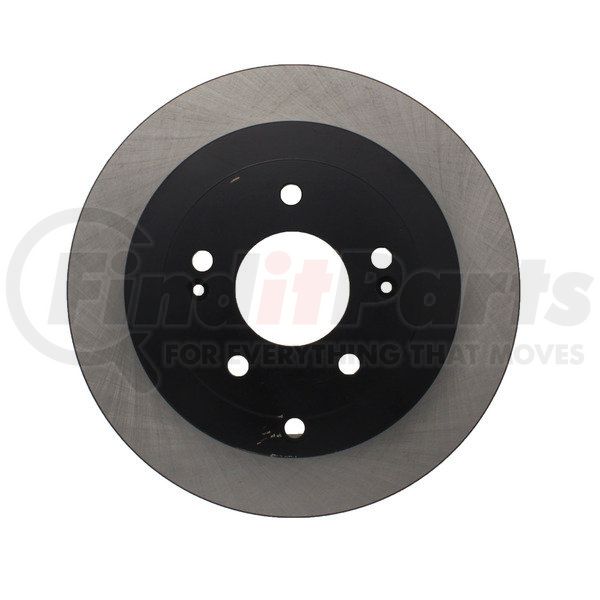

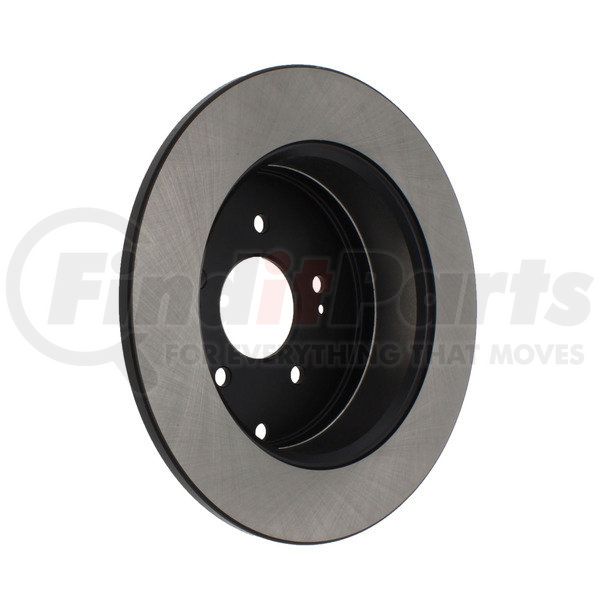

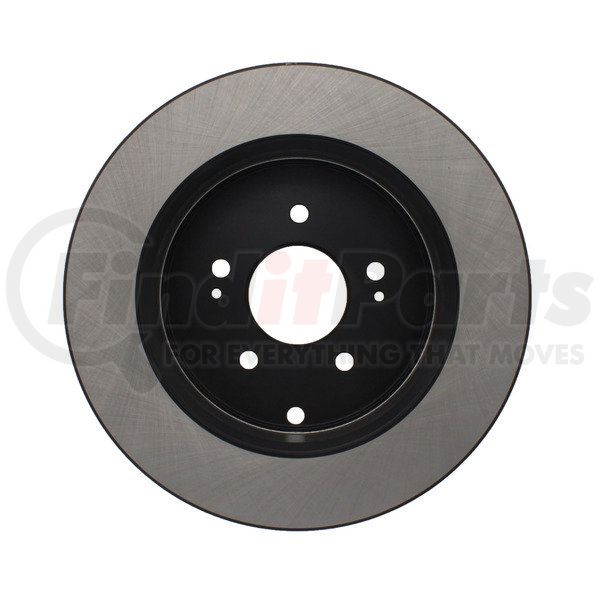

Centric 120.51025 - Centric Premium Brake Rotor
$5549
MSRP: $87.29
Save: $31.80
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
Product Attributes
| Disc Mounting [cntrc] | Floating / DIH |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 3 |
| Max Pb Drum Dia [cntrc] Mm | 191.000 |
| Max Pb Drum Dia [cntrc] In | 7.520 |
| Weight [cntrc] Kgs | 6.840 |
| Weight [cntrc] Lbs | 15.050 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 9.400 MM |
| Discard Thickness | 0.370 IN |
| Nominal Thickness | 0.437 IN |
| Nominal Thickness | 11.100 MM |
| Hat Finish | Coated |
| Overall Height | 72.000 MM |
| Overall Height | 2.835 IN |
| Outside Diameter | 302.000 MM |
| Outside Diameter | 11.890 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 190.000 MM |
| Nominal Drum Diameter | 7.480 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.713 IN |
| Center Hole Diameter | 68.900 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.500 MM |
| Stud/Lug Hole Diameter | 0.492 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 805890358725 |
Part Interchanges
CENTRIC 120.51025 Cross Reference
We have 6 alternatives for the 120.51025 by CENTRIC:
Fits Vehicles
- Hyundai Santa Fe (2007-2009)
