Name: Reach Cooling 41-13629 Radiator
SKU: 4113629
Availability: OutOfStock

REACH COOLING part description

Product Description

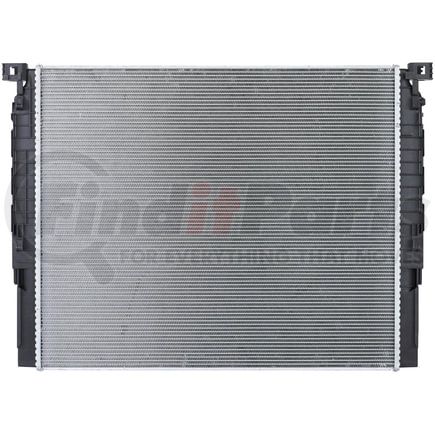

Radiator

Application Summary

BMW:2018-2020 530e/ 530e xDrive/2017-2019 740e xDrive/2017 740Le xDrive/2016-2019 750i/ 750i xDrive/2018 750Li xDrive

Features & Benefits

Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Folded fin edges increase stability and heat disbursement properties.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Our fin edges are folded for increased stability and heat disbursement properties.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

No Shipping Restriction

radiator, engine cooling, rad, car radiator, auto radiator, radiator cap

Product Attributes

Outlet Header Length	21 1/4 IN
Outlet Location	Middle Right
Outlet Header Width	1.75 IN
Outlet Diameter	1 1/2 IN
Radiator Cap Included	Not Needed
Core Thickness	26 MM
Inlet Header Length	539.8 MM
Core Width	528.3 MM
Transmission Oil Cooler Included	No
Inlet Header Width	1.75 IN
Inlet Diameter	1.5 IN
Core Height	24.687 IN
Down Flow Or Cross Flow Type	Cross Flow
Core Material	Aluminum
Tank Material	Plastic PA66-GF30
Inlet Location	Upper Left
Core Row Quantity	1
Engine Oil Cooler Included	No
Core Height	627 MM
Core Height	627.049 MM
Core Width	528.32 MM
Inlet Header Length	539.75 mm
Inlet Header Length	21 1/4 IN
Outlet Header Width	44.45 MM
Outlet Diameter	38.1 MM
Outlet Diameter	38.1 MM
Core Thickness	1 IN
Core Width	20 4/5 IN
Outlet Header Length	539.8 MM
Inlet Diameter	38.1 mm
Inlet Header Width	44.45 mm
Outlet Header Width	44.45 mm
Outlet Header Length	539.75 mm
Inlet Diameter	38.5 MM
Core Thickness	25.4 MM
Inlet Header Width	44.45 MM

Part Interchanges

Fits Vehicles

BMW 740Le xDrive (2017)
BMW 750Li xDrive (2018)
BMW M760Li xDrive (2018-2019)
BMW M550i xDrive (2018-2019)
BMW 530e xDrive (2018-2022)
BMW 530e (2018-2022)
BMW M760i xDrive (2017-2019)
BMW Alpina B7 (2017-2019)
BMW 740e xDrive (2017-2019)
BMW 750i xDrive (2016-2019)
BMW 750i (2016-2019)
