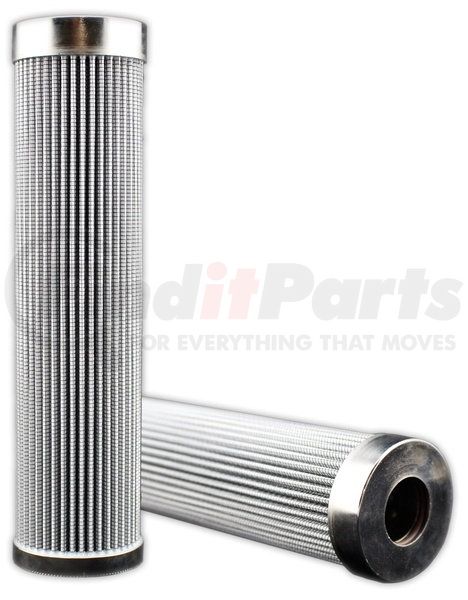

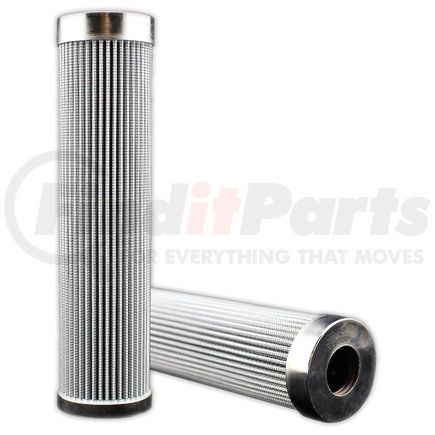

Name: Main Filter MF0320219 Aftermarket Replacement Hydraulic Filter with 10 Micron Rating, Glass, Outside-In Flow
SKU: mf0320219
Price: 87.99 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	2.008
Inide Diameter Top	0.937
Outside Diameter Bottom	2.008
Collapse Pressure	3045
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	22.185119
Filter Area sq in	227
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/9.9
Beta Ratio 2	1000/12.4
Micron 1	10

Features & Benefits

Interchange/replacement for OEM HYDAC/HYCON p/n H98018010BH
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0320219 replaces OEM H98018010BH by HYDAC/HYCON and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
Interchange/replacement for OEM HYDAC/HYCON p/n H98018010BH
Images may be a general representations of products
Compatible with OEM filter in fit, form and function
Built using Quality Components with strict quality control.
Main Filter MF0320219 replaces OEM H98018010BH by HYDAC/HYCON and is compatible in fit, form and function.
Images may be a general representations of products

Features & Benefits

Interchange/replacement for OEM HYDAC/HYCON p/n H98018010BH
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0320219 replaces OEM H98018010BH by HYDAC/HYCON and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Wrap	No
Micron Rating	10
Height (in.)	8.14
Outside Diameter (Top)	2.01 in.
Product Media	Glass
Outside Diameter (Bottom)	2.01 in.
Bypass	No
Fluid Type	HH / HL / HM / HV
Filter Area (sq. in.)	227
Minimum Operating Temperature	-13 Deg Fahrenheit
Dust Holding Capacity	22.19 grams
Handle	No
Inside Diameter (Top)	0.94 in.
Maximum Operating Temperature	248 Deg Fahrenheit
Gasket Material	Viton
Beta Ratio 1	200/9.9
Beta Ratio 2	1000/12.4
Flow Direction	Outside-In
Collapse Pressure	3045

MAIN FILTER MF0320219 Cross Reference

We have 1 alternatives for the MF0320219 by MAIN FILTER:

HYDAC H98018010BH
