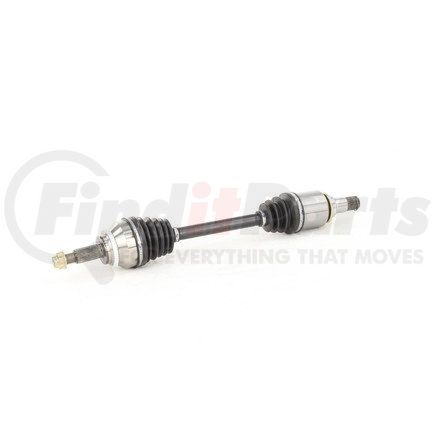

TrakMotive TO8407 - AAR CV Axle Shaft
- Part Number
- TO8407
- Manufacturer
- TRAKMOTIVE
- Description
-
AAR CV Axle Shaft
details
$16149
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
TRAKMOTIVE part description
Product Description
AAR CV Axle Shaft
Product Attributes
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | N/A |
| Axle Bolt Length (mm) | N/A |
| Axle Bolt Thread Size | N/A |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.85 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1.18 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.36 |
| Axle Nut Length (mm) | 34.64 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | N/A |
| Inboard Bolt Head Size (mm) | N/A |
| Inboard Bolt Head Type | N/A |
| Inboard Bolt Length (in) | N/A |
| Inboard Bolt Length (mm) | N/A |
| Inboard Bolt Thread Size | N/A |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number of Bolt Holes | N/A |
| Number Of Inboard Joint Bolt Holes | N/A |
| Number Of Inboard Shaft Bolts | N/A |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Joint Bolt Holes | N/A |
| Number Of Outboard Shaft Bolts | N/A |
| Number Of Outboard Splines | 30 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.42 |
| Overall Compressed Length (mm) | 671 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00844084042613 |
Part Interchanges
Fits Vehicles
- Lexus RX350L (2018-2022)
- Toyota Highlander (2014-2016)
- Lexus RX350 (2010-2022)
