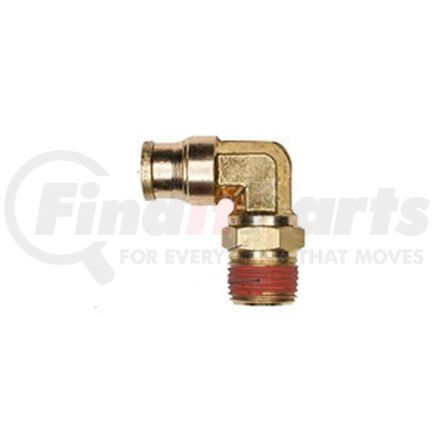

(888) 312-8812 Login SignupHALDEX APM69S8MXM16 Air Brake Air Line Connector Fitting - Male 90� Elbow, Swivel, 8 mm Tube Size, M16 Thread Size
MSRP: $22.18
$1499
Save $7.19
Limited availability at this price!
In Stock
Get it by Friday, Dec 26
HALDEX APM69S8MXM16 Part Description
Manufacturer
Product Description
Metric Male 90° Elbow Swivel 8MT M16THRD Sold in quantities of 10
Features & Benefits
- With a typical temperature range from -40° to 220°F
- Made compatible with nylon air brake tubing
- With CA360 and CA377 brass construction for superior durability
- Lighter and stronger than competing units with extruded designs
- Built to offer years of reliable use
- Proudly made in the USA
Haldex Midland Metric Male 90° Elbow Swl
The Haldex Midland metric male 90° elbow swl is a crucial air brake system component specifically designed to change the angle or direction of the air lines. A part of Haldex’s comprehensive range of air brake air line connector fittings, this air-push connect fitting with forged brass design and swivel feature is made to conform and meet FMVSS 571.10, SAE J1131, J2494 1, and J2494 3 air brake performance requirements.
HALDEX APM69S8MXM16 Specifications
Product Attributes
| Axis 1 Length | 26.2 mm |
| Axis 2 Length | 33.3 mm |
| Connector Gender | Male |
| Family | Metric |
| Fitting Inlet Angle | 90 Degree |
| Freight Class | 70 |
| Hex 1 Size | 1/2 in. |
| Hex 2 Size | 7/8 in. |
| Material | Brass |
| Thread Diameter | M16 |
| Tubing Inside Diameter | 8 mm |
| Type | Swivel Elbow |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 7412200035 |
| Harmonized Tariff Code (HTS) | 7412200035 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | 24 MO, 200,000 MI=All Other Tour Bus, Intercity Transit Products Not Listed(8). 12MO,100,000 MI= All Other New Products Not Listed(13), City Transit Oper.(9) (All New Products), Friction Products(7), New Clutches(6). See L20221W.pdf for warranty details |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653386454 |
| VMRS Code | 013010002 |
HALDEX APM69S8MXM16 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | MAQ69-DOTS-8XM16 |
| Alkon Corp | MAQ69-DOTS-8XM16 |
HALDEX APM69S8MXM16 Customer Reviews
No reviews yet
Be the first to review this product!
HALDEX APM69S8MXM16 Manufacturer Information
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
