Name: Reach Cooling 41-2147 Radiator
SKU: 412147
Price: 154.99 USD
Availability: InStock

REACH COOLING part description

Product Description

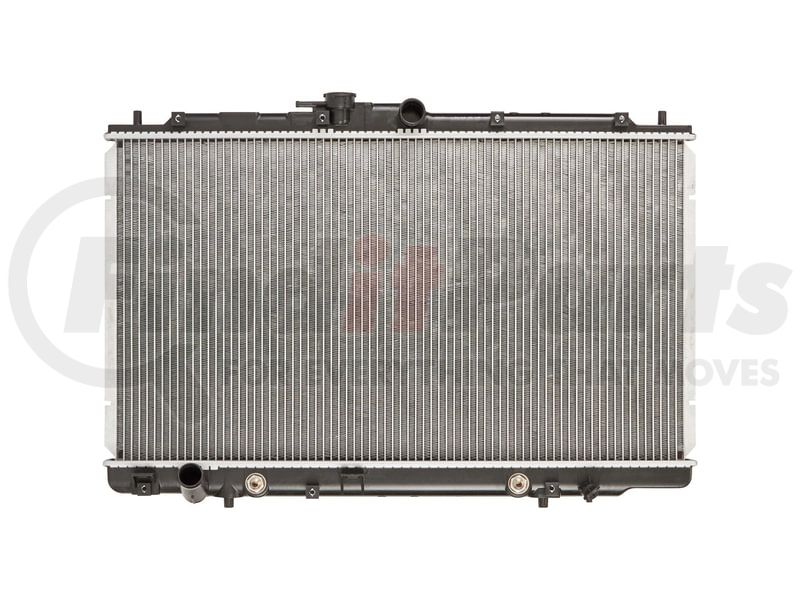

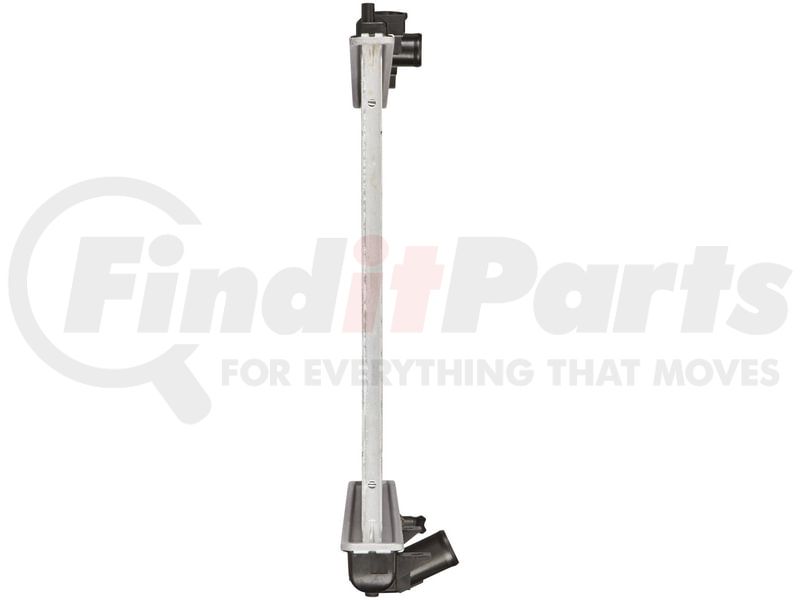

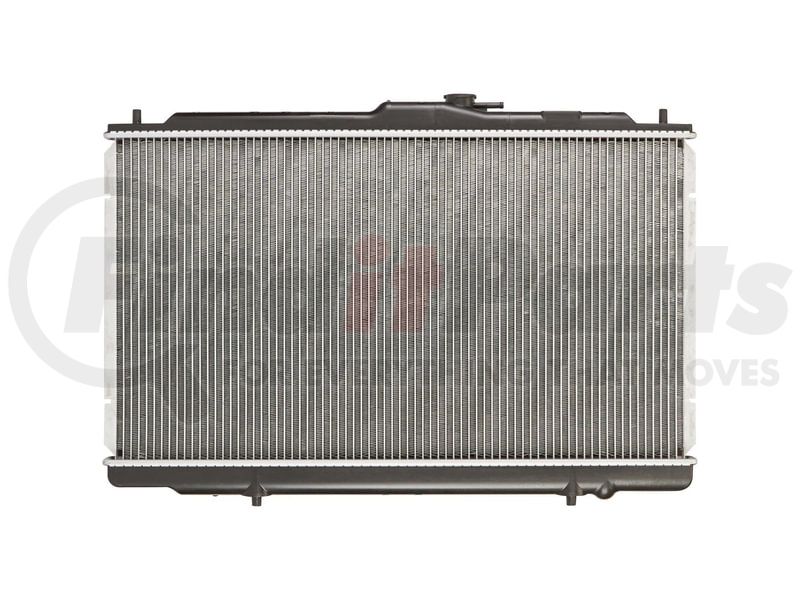

Radiator

Application Summary

Acura:99-2001 TL; Honda:98-2002 Accord

Features & Benefits

Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Folded fin edges increase stability and heat disbursement properties.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Our fin edges are folded for increased stability and heat disbursement properties.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

No Shipping Restriction

radiator, complete, engine cooling, rad, cooling, heat, transfer

Product Attributes

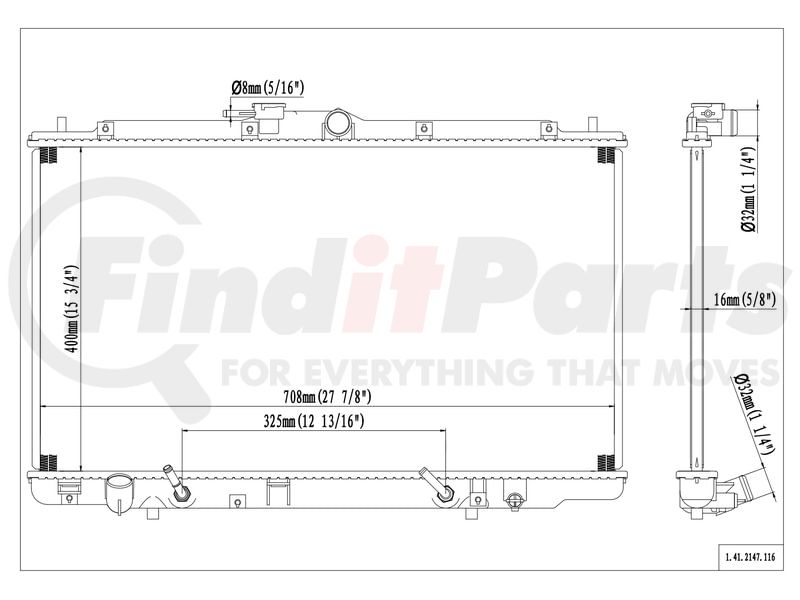

Core Height	15.75 IN
Outlet Diameter	1.25 IN
Inlet Header Width	1.25 IN
Transmission Oil Cooler Distance between Fittings	12.812 IN
Inlet Location	Center Top
Core Row Quantity	1
Engine Oil Cooler Included	No
Fitting Connection Type	Pipe connect
Core Thickness	15.9 MM
Core Width	27.875 IN
Inlet Header Length	28 15/16 IN
Transmission Oil Cooler Included	Yes
Outlet Header Width	1.25 IN
Inlet Diameter	31.8 MM
Radiator Cap Included	No

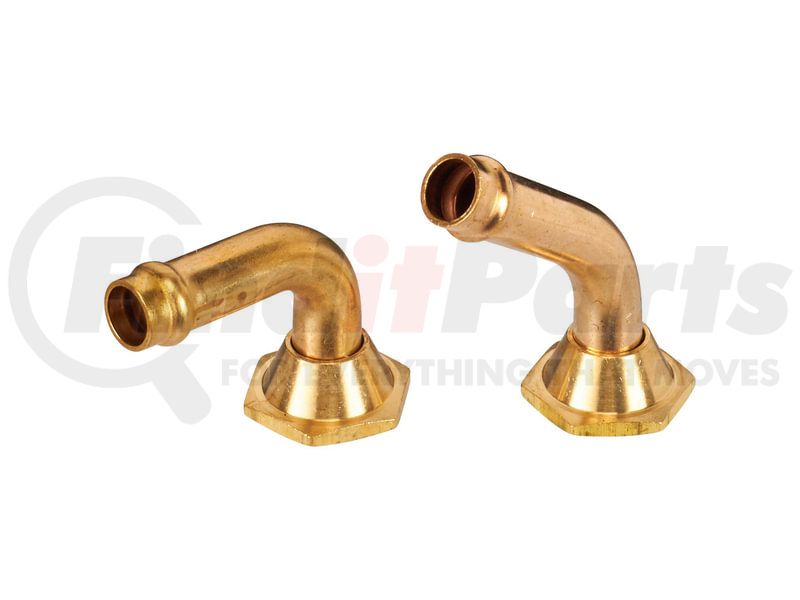

Trans Cooler Adapter Fittings Included (True/False)	True
Core Material	Aluminum
Down Flow Or Cross Flow Type	Down Flow
Outlet Header Length	28 15/16 IN
Outlet Location	Lower Left
Tank Material	Plastic
Transmission Oil Cooler Distance between Fittings	325 MM
Outlet Diameter	32 MM
Core Thickness	15.875 MM
Outlet Diameter	31.75 MM
Transmission Oil Cooler Distance between Fittings	325.424 MM
Inlet Diameter	1 1/4 IN
Core Height	400 MM
Core Thickness	5/8 IN
Inlet Header Width	31.75 MM
Outlet Header Length	735 MM
Outlet Header Width	31.75 MM
Core Height	400.05 MM
Inlet Header Length	734.999 mm
Inlet Header Width	31.75 mm
Outlet Header Width	31.75 mm
Core Width	708.025 MM
Inlet Diameter	31.75 mm
Outlet Header Length	734.999 mm
Core Width	708 MM
Inlet Header Length	735 MM

Additional Information

Country of Origin (Primary)	CN
UPC	06949521709525
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 41-2147 Cross Reference

We have 1 alternatives for the 41-2147 by REACH COOLING:

DENSO 221-3213

Fits Vehicles

Honda Accord (1998-2002)
Acura TL (1999-2001)
