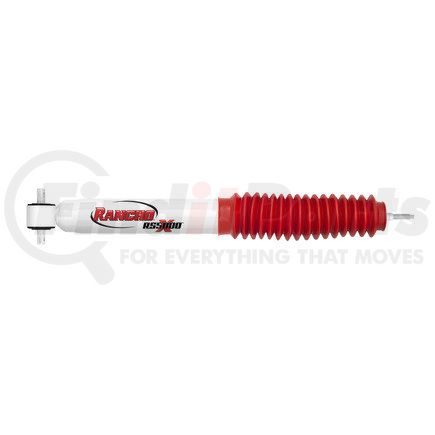

Rancho RS55222 - RS5000X Suspension Shock Absorber
$8849
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
RANCHO part description
Product Description
RS5000X Suspension Shock Absorber
Features & Benefits
- IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
- MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
- STRONG AND DURABLE -- Features a 16mm nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, 35mm sintered iron piston for enhanced structural integrity and polyvinyl protective boot
- HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248degF
- HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
- REDUCES FADE -- Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
- MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
- BUY WITH CONFIDENCE -- Comes with Rancho's Limited Lifetime Warranty
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
Product Attributes
| Compressed Length | 9.42 IN |
| Travel Length | 4.28 in |
| Finish | Painted |
| Grade Type | Performance |
| Extended Length | 13.7 in |
| Gas Charged | Yes |
| Adjustable Damping | No |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Upper Mount Code | S42 |
| Lower Mount Code | XP11 |
| Hydraulic Lockout | No |
| Shock Absorber Bore Size | 35 MM |
| Internal Rebound Bumper | Yes |
| Body Diameter | 2 |
| Internal Construction Type | Dual Tube |
| Lower Mount Type | Cross Pin Mount - Closed Ended, 3/8" Hole ID (Both Ends) X 2.3/4" Pin Length (Hole Center to Center) |
| Part Description | Shock Absorber |
| Parts Pack(s) | P01134 |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Compressed Length | 239.3 MM |
| Extended Length | 348 MM |
| Travel Length | 108.7 MM |
| Shock Stroke | 4.28 IN |
| Shock Stroke | 108.7 MM |
| Lower Mount Code | XP11 |
| Upper Mount Code | S42 |
| Shock Absorber Rod End Measuring Point | Center of Cross Pin |
| Shock Absorber Body End Measuring Point | Base of Stem |
| Mounting Hardware Included | Yes |
| Body Diameter | 2 IN |
| Body Diameter | 50.8 MM |
| Cylinder Outside Diameter | 2 IN |
| Cylinder Outside Diameter | 50.8 MM |
| Body Material | Steel |
| Cylinder Material | Steel |
| Body Color | White |
| Cylinder Color | White |
| Color | White |
| Cylinder Finish | Painted |
| Boot Included | Yes |
| Dust Shield Diameter | 2.99 IN |
| Dust Shield Diameter | 75.946 MM |
| Dust Shield Material | Rubber |
| Dust Shield Color | Red |
| Rod Diameter | 0.622 IN |
| Rod Diameter | 15.8 MM |
| Shaft Material | Nitrocarburized |
| Shock Absorber Bore Size | 1.3779527559055118 IN |
| Internal Rebound Spring | No |
| Type | Telescopic |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Valving Type | Progressive |
| Self-Leveling | No |
| Adjustable Ride Height | No |
| Maximum Ride Height Lowering Distance | 0 IN |
| Maximum Ride Height Raising Distance | 0 IN |
| Air Adjustable | No |
| Air Ride Suspension | No |
| Bladder(s) Included | No |
| Bladder Sleeve(s) Included | No |
| Bladder Heavy Duty Crimping Rings Included | No |
| New Or Remanufactured | New |
| Coil Over Springs Included | No |
| Bearing Plate Included | No |
| Spring Included | No |
| Coil Spring Insulator(s) Included | No |
| Spring Isolators Included | No |
| Spring Seat Included | No |
| Remote Reservoir | No |
| Strut Mount Insulator(s) Included | No |
| Adjustable Damping | No |
| Internal Construction Type | Twin Tube |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | 01164 |
| UPC | 00039703009898 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
Part Interchanges
Fits Vehicles
- Mazda B4000 (1998-2004)
- Mazda B3000 (1998-2007)
- Mazda B2500 (1998-2001)
- Mazda B2300 (2001-2009)
- Ford Ranger (1998-2011)
- GMC Sonoma (1991-2003)
- GMC S15 (1982-1990)
- GMC Jimmy (1992-2004)
- GMC S15 Jimmy (1983-1991)
- Chevrolet S10 (1982-2003)
- Chevrolet Blazer (1995-2005)
- Chevrolet S10 Blazer (1983-1994)
- Isuzu Hombre (1996-2000)
