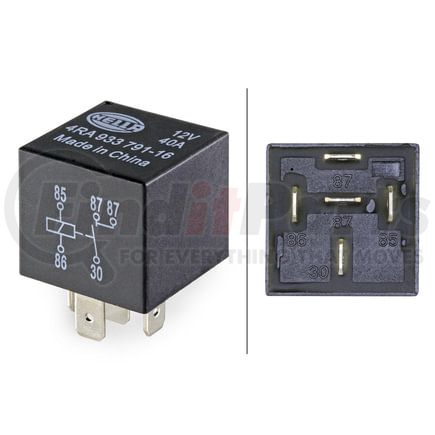

HELLA part description

Product Description


Product Attributes

Relay function Window Regulator
Combi Switch Function Normally Open Contact
Assy./disassy. By Qualified Personnel Required! .
Inductive Load [a] 15
Temperature Range To [°c] 125
Capacitive Load [a] 5
Temperature Range From [°c] -40
Capacity at 12V 40A
Rated Current [a] 40
Quantity 40
Voltage [V] 12
Number of Pins 5
Ohmic Load [a] 40

Additional Information

Harmonized Tariff Code (HTS) 8536410050
Warranty Time UOM MO
Warranty Time 12
Country of Origin (Primary) CN
UPC 04082300693812
