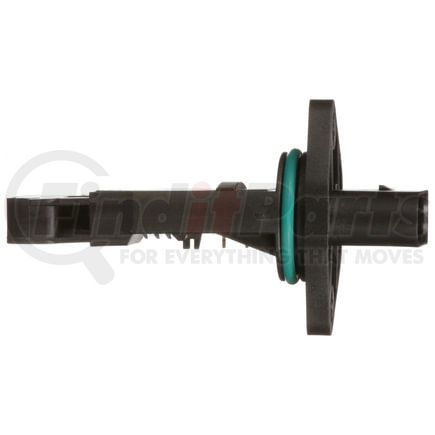

(888) 312-8812 Login SignupDELPHI AF10562 Mass Air Flow Sensor
$19499
Limited availability at this price!
5 Day Lead Time
Get it by Tuesday, Dec 23
DELPHI AF10562 Part Description
DELPHI AF10562 Specifications
Product Attributes
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Item Grade | Standard Replacement |
| Color | Black |
| Housing Included | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 60 MM |
| Sensor Casing Width | 30 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 47.00 MM |
| Mounting Hole Diameter | 0.2 IN |
| Seal Outside Diameter | 34.8 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 2.3 IN |
| Sensor Casing Width | 1.1 IN |
| Bolt Hole Center To Bolt Hole Center | 1.80 IN |
| Mounting Hole Diameter | 5.6 MM |
| Seal Outside Diameter | 1.3 IN |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604307045 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10562 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 158-1610 |
| Bosch | 0280218038 |
| Volkswagen | 078 906 461 BX |
| CARDONE Reman | 74-10172 |
| Wells | SU5412 |
| Standard Motor Products | MAS0440 |
| NAPA Reman Computers | XTP410172 |
| Blue Streak Electronics New | MF21266N |
| N/A | MQ7337, MF21266 |
DELPHI AF10562 Fits Vehicles
- Audi S4 (2000)
- Audi A6 Quattro (2000)
