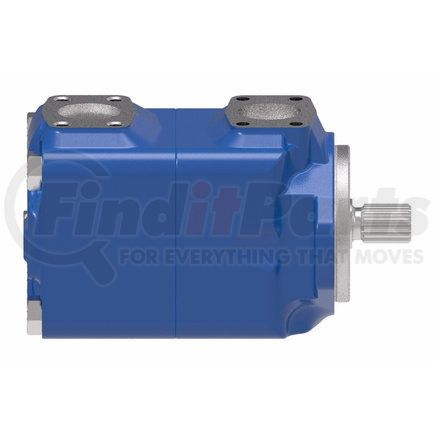

Eaton 361166-3 - 25M Series Hydraulic Pump - for Vickers Vane Motor
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
EATON part description
Product Attributes
| Application | Elevator scraper drives, hydrostatic drives, auxiliary applications |
| Bearing package | Standard |
| Configuration | Single |
| Design Code | 20 |
| Displacement | 43.9 CCR |
| FRAME SIZE | 25M |
| Front outlet port position (cover end view) | INLINE WITH INLET PORT |
| Minimum speed | 4000 RPM |
| Paint | None |
| Product material | Cast Iron |
| Ring size | 42 |
| Seal Material | Buna-N |
| Series | 25M |
| Shaft rotation | Right |
| Shaft seals | Single |
| Shafts | Straight Keyed |
| SPECIAL FEATURES | None |
| Vane function type | Motor |
| Working pressure - max | 500 Psi |
