(888) 312-8812 Login SignupHALDEX GC2430L GoldSeal Double Diaphragm Spring Brake - 2430, 2.5 in. Stroke Length, Long Stroke
Tap to view 1 more
MSRP: $167.18
$12949
Save $37.69
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 24

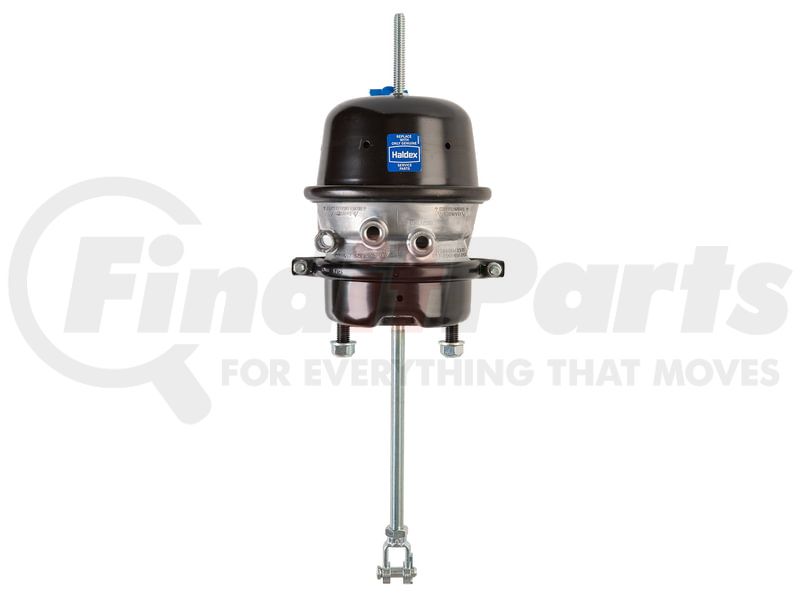

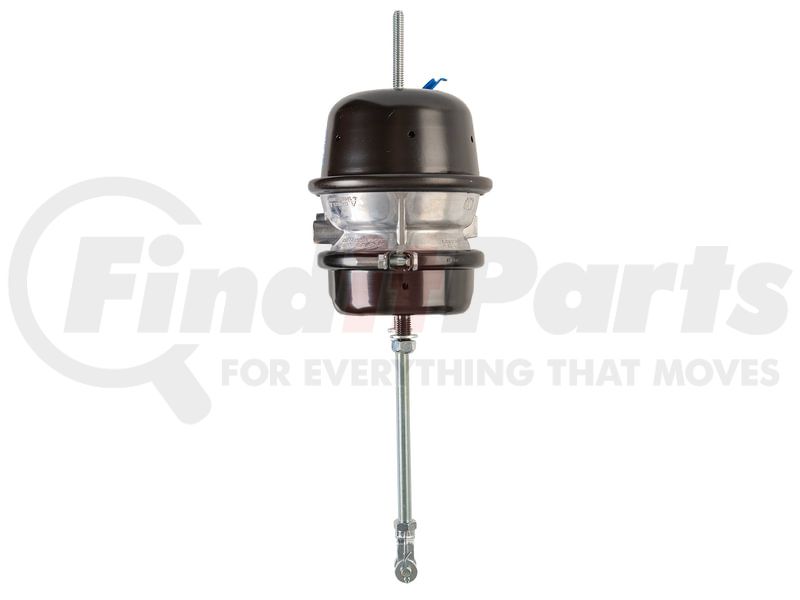

HALDEX GC2430L Part Description
Manufacturer
Product Description
Brake Chamber GoldSeal 2430, Long Stroke
Application Summary
Combination - Long Stroke - Size 2430
Features & Benefits
- Uses superior power spring technology for unparalleled force output consistency
- Has powder-coated housing that effectively resists fatigue and corrosion
- Comes with two O-rings for positive sealing and plastic bearings for extended life
- World-class diaphragm that’s made of high-quality rubber compound for superior flexibility and heat- and cold-resistance
- With rugged powder-coated service housing for corrosion protection
- Orange Alert® Stroke Indicator effectively informs the user if brake maintenance is required
- Self-piloting dust shield extends air brake system lifespan
- Comes in a variety of sizes to fit all drum brake applications
Haldex GoldSeal Air Brake Spring Brake
Equip your vehicle with a high-quality Haldex GoldSeal air brake spring brake. This product is the only truly sealed double diaphragm spring brake specifically designed for heavy duty applications.
HALDEX GC2430L Specifications
Product Attributes
| Air Port Position | 90° |
| Bracket to End of Spring Housing Length | 9.3 in. |
| Finish | Powder Coated |
| Freight Class | 70 |
| Housing Material | 9 Gauge Steel |
| Piggyback Length | 6.8 in. |
| Push Rod Length | 10 in. |
| Series | GoldSeal |
| Service Chamber Size | 24/30 |
| Service Clampband Position | 0° |
| Service Clampband Size | 9.4 in. |
| Spring Housing Flange Size | 8.3 in. |
| Stroke Length | 2.5 in. |
| Stroke Type | Long |
| Stud Distance | 4.75 in. |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412310080 |
| Harmonized Tariff Code (HTS) | 8412310080 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | See Haldex Aftermarket Product warranty Policy (L20221W).pdf |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653297958 |
| VMRS Code | 013004027 |
HALDEX GC2430L Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | E-GC-2430-LS, 1392430002, 000316A, 1392430051, 5007131, 811851, 514706, AG514706, HDX1392430007, P-66697, B168602, F024048, A-JC0025-1, 1X248812-A, F6HS2225FA, 1835030, C-22792-2, 98832-007, 1694056C91, 1L33276X, 19QE239P3, 164568, 12422, 40502144A, 3324051, 19405-10, 926070, N42A-2430C3D, BTS-2430L, LL-3377-10 |
| Euclid | E-GC-2430-LS, E-GC2430-LS |
| Haldex | 1392430002, 1392430085, 1392430086, 1392430092, 1392430093, E503276X24, E513276X24, N42430NA, S1392430036, S1392430037, S1392430038, S1392430039, S1392430040, S1392430041, S1392430042, S1392430043 |
| Holland | 000316A |
| Midland | 1392430051, 15425, 5178200B, KSD2430CP, KSD2430EP, MA15425, MA15450, N42430A, N42430AD, N42430AF, N42430AP, N42430AR, N42430AS, N42430AT, N42430AW, N42430AY, N42430BA, N42430BC, N42430BD, N42430BE, N42430CA, N42430CB, N42430FA, N42430FB, N42430FC, N42430FD, N42430FE, N42430J, N42430NA, N4430CB |
| Bendix | 5007131, 5010434, K026561 |
| Eaton | 811851, 812284 |
| AG Chem | 514706 |
| AGCO | AG514706 |
| Anchorloc | 1392430002, 1392430007, 1392430008, 1392430009, 1392430010, 1392430011, 1392430012, 1392430013, 1392430014, 1392430015, 1392430016, 1392430019, 1392430022, 1392430023, 1392430024, 1392430025, 1392430026, 1392430027, 1392430028, 1392430031, 1392430032, 1392430033, 1392430034, 1392430036, 1392430037, 1392430038, 1392430039, 1392430040, 1392430041, 1392430042, 1392430043, 1392430051, 1392430052, 1392430057, 1392430058, 1392430059, 1392430060, 1392430061, 1392430063, 1392430064, 1392430070, 1392430071, 1392430072, 1392430073, 1392430074, 1392430075, 1392430085, 1392430086, 162778, 163106, 163251, 163419, 163452, 163453, 163491-1, 163491-3, 163491-5, 163544-L, 163544-R, 163549, 163597, 163696, 163771, 163816, 163822, 163823, 163840, 163860, 164011, 164019, 164021, 164059, 164060, 164107, 164127, 164209, 164308, 164397, 164457, 164509, 164540, 164562, 164568, 164599, 164601, 164630, 164634, 164636, 164664, 164702, 164703, 164724, 164784, 164831, 164870, 164871, 165107, 165109, 165145, 165145-L, 165145-R, 165146, 165146-L, 165146-R, 165209, 165210, 165342, 165343, 165344, 165345, 165364, 165425, 165426, 165427, 165683, 165857, 165954, 165955, 166043, 166044, 166045, 166046, 166288, 166401, 2430021, 2430077, 2430GC-LS |
| Daimler Truck North America | HDX1392430007, HDX1392430009, HDX1392430016 |
| Dana Commercial Vehicle Service Parts | P-66697 |
| E D Etnyre | B168602 |
| Fairmont Tam | F024048 |
| Fruehauf | A-JC0025-1, A-JC0025-2, A-JC0025-3 |
| GMC | 1X248812-A, 1X248813-A, 1X248813A |
| Ford | F6HS2225FA, XC452225GA |
| Oshkosh | 1835030 |
| Turner | C-22792-2 |
| Hendrickson | 98832-007, 98832-025, C-22792-2, C-24163-2, C-32466-1, C-32466-2, S-22792-1, S-22792-2, S-24163-1, S-24163-2, S-24163-3, S22792-3 |
| Navistar | 1694056C91, 2015909C91, 2015910C91, 2015919C91, 2015985C91 |
| Rockwell International | 1L33276X, J16-3276-X-24 |
| Mack | 19QE239P3, 19QE487P1, 19QE487P10, 19QE487P2, 19QE487P3, 19QE487P4, 19QE487P5, 19QE487P6, 19QE487P7, 19QE487P8, 19QE487P9 |
| Freightliner | 164568, 6804203018, 6814204518, HDX1392430007, HDX1392430009, HDX1392430016, HDX164599, HDX164702, HDX164870, HDX165107, HDX165109, HDX165363, HDX165425, HDX165426, HDX165554, HDX165568, HDX165630, HDX165636, HDX165703, HDX165724, HDX165871, HDX166044, HDX166045, HDX166046 |
| Di-Pro Inc. | 12422, 12477 |
| Great Dane Trailers | 40502144A, 40502147, RBPBTS-2430 |
| MGM Brakes | 3324051, 3428051, 3429051, 3526051, 3624051, 3625051, 3629051 |
| Watson & Chalin | 19405-10, 19405-20, 19460-03 |
| Wagner | 926070 |
| Alliance Torque Converters | N42A-2430C3D, N42A-42430C3D |
| RANGER BRAKE | BTS-2430L |
| Pettibone | LL-3377-10 |
| EUCLID | E-GC-2430-LS, E-GC2430-LS |
| HOLLAND | 000316A |
| MIDLAND | 1392430051, 15425, 5178200B, KSD2430CP, KSD2430EP, MA15425, MA15450, N42430A, N42430AD, N42430AF, N42430AP, N42430AR, N42430AS, N42430AT, N42430AW, N42430AY, N42430BA, N42430BC, N42430BD, N42430BE, N42430CA, N42430CB, N42430FA, N42430FB, N42430FC, N42430FD, N42430FE, N42430J, N42430NA, N4430CB |
| BENDIX | 5007131, 5010434, K026561 |
| ANCHORLOK | 1392430002, 1392430007, 1392430008, 1392430009, 1392430010, 1392430011, 1392430012, 1392430013, 1392430014, 1392430015, 1392430016, 1392430019, 1392430022, 1392430023, 1392430024, 1392430025, 1392430026, 1392430027, 1392430028, 1392430031, 1392430032, 1392430033, 1392430034, 1392430036, 1392430037, 1392430038, 1392430039, 1392430040, 1392430041, 1392430042, 1392430043, 1392430051, 1392430052, 1392430057, 1392430058, 1392430059, 1392430060, 1392430061, 1392430063, 1392430064, 1392430070, 1392430071, 1392430072, 1392430073, 1392430074, 1392430075, 1392430085, 1392430086, 162778, 163106, 163251, 163419, 163452, 163453, 163491-1, 163491-3, 163491-5, 163544-L, 163544-R, 163549, 163597, 163696, 163771, 163816, 163822, 163823, 163840, 163860, 164011, 164019, 164021, 164059, 164060, 164107, 164127, 164209, 164308, 164397, 164457, 164509, 164540, 164562, 164568, 164599, 164601, 164630, 164634, 164636, 164664, 164702, 164703, 164724, 164784, 164831, 164870, 164871, 165107, 165109, 165145, 165145-L, 165145-R, 165146, 165146-L, 165146-R, 165209, 165210, 165342, 165343, 165344, 165345, 165364, 165425, 165426, 165427, 165683, 165857, 165954, 165955, 166043, 166044, 166045, 166046, 166288, 166401, 2430021, 2430077, 2430GC-LS |
| Daimler | HDX1392430007, HDX1392430009, HDX1392430016 |
| DANA | P-66697 |
| FAIRMONT TAM | F024048 |
| FRUEHAUF | A-JC0025-1, A-JC0025-2, A-JC0025-3 |
| FORD | F6HS2225FA, XC452225GA |
| HENDRICKSON | 98832-007, S*22792-3, 98832-025, C-22792-2, C-24163-2, C-32466-1, C-32466-2, S-22792-1, S-22792-2, S-24163-1, S-24163-2, S-24163-3 |
| NAVISTAR | 1694056C91, 2015909C91, 2015910C91, 2015919C91, 2015985C91 |
| ROCKWELL | 1L33276X, J16-3276-X-24 |
| FREIGHTLINER | 164568, 6814202118, HDX1372430007, HDX1392430008, HDX164011, HDX164871, HDX165364, HDX165634, HDX165702, HDX166043, HDX166288, 6804203018, 6814204518, HDX1392430007, HDX1392430009, HDX1392430016, HDX164599, HDX164702, HDX164870, HDX165107, HDX165109, HDX165363, HDX165425, HDX165426, HDX165554, HDX165568, HDX165630, HDX165636, HDX165703, HDX165724, HDX165871, HDX166044, HDX166045, HDX166046 |
| DI-PRO | 12422, 12477 |
| WAGNER | 926070 |
| PETTIBONE | LL-3377-10 |
| MACK | 19QE487P1, 19QE487P10, 19QE487P4, 19QE487P6, 19QE487P8, 19QE487P9 |
HALDEX GC2430L Cross References
We have 4 alternatives for the GC2430L by HALDEX:
HALDEX GC2430L Customer Reviews
No reviews yet
Be the first to review this product!
HALDEX GC2430L Manufacturer Information
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
