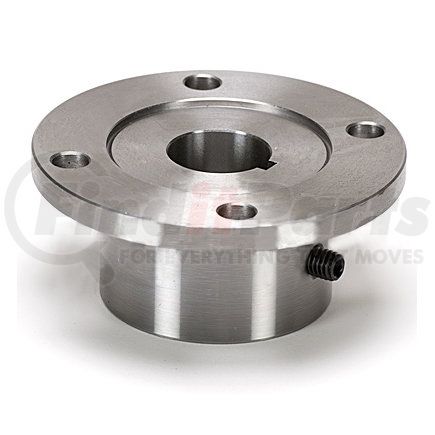

Neapco N3-1-1013-3 - Driveshaft Companion Flange
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
NEAPCO part description
Product Description
Driveshaft Companion Flange
Product Attributes
| Bolt Circle (in) | 3.750 |
| Bore Dia. (in) | 1.250 |
| Driveline Series | 1350-1410 |
| FLANGE TYPE | Standard |
| Hole Dia./Thread Size (in)(mm) | 0.454 |
| KEYWAY (MAX) | 0.253 |
| Keyway Width (in)(mm) | 0.250 |
| Number of Bolt Holes | 4 |
| Outside Diameter (In) | 4.562 |
| Overall Length (In) | 2.000 |
| Pilot Diameter (in)(mm) | 2.750 |
| Set Screw Hole Size (in) | 3/8-16 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708996890 |
| UPC | 00083869013312 |
Part Interchanges
NEAPCO N3-1-1013-3 Cross Reference
We have 2 alternatives for the N3-1-1013-3 by NEAPCO:
