Horton 9903000 - VMASTER FAN DR
$46099
In stock
limited availability at this price!
. Learn more
HORTON part description
Features & Benefits
- Air-sensing technology automatically engages cooling when needed
- Compact 2.01-inch mounting depth allows for a precise, space-saving fit
- Reduces engine strain by avoiding constant engagement
- Prevents overheating, helping to extend engine life
- 6-inch fan bolt circle ensures a secure, stable connection for optimal performance
- Lowers fuel consumption by optimizing cooling cycles

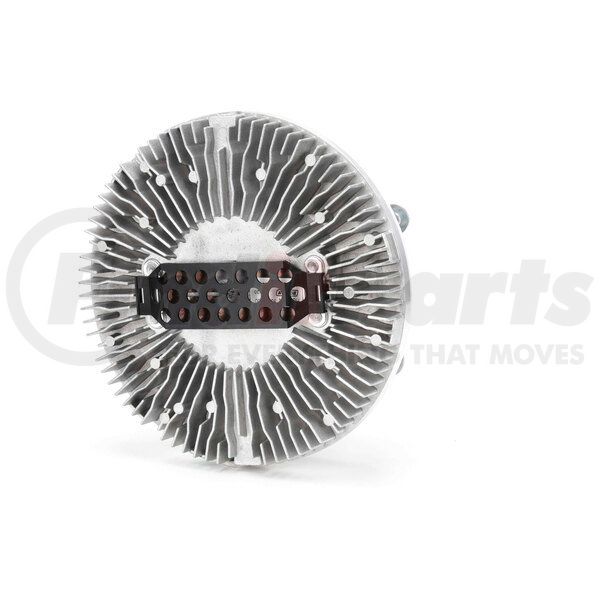

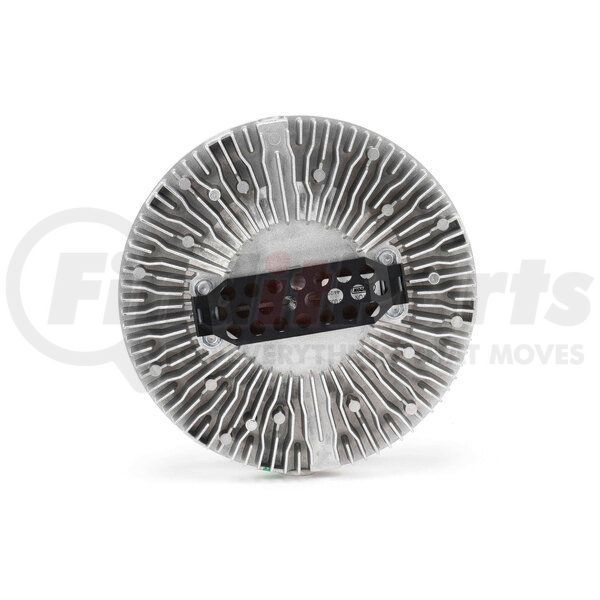

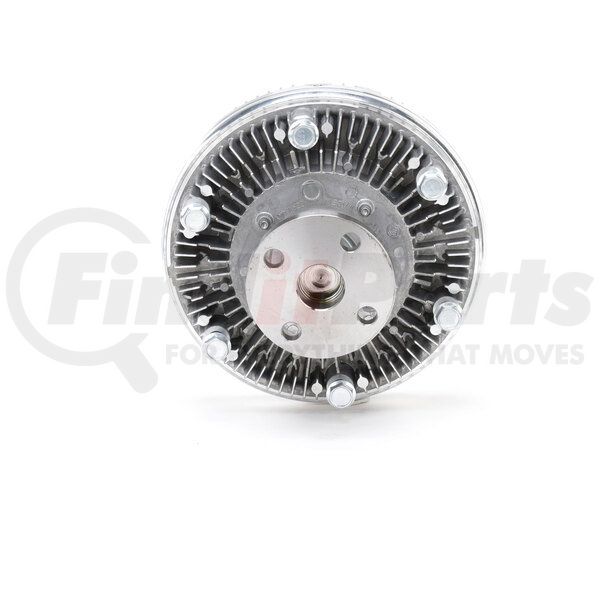

Horton VMaster Air-Sensing Engine Cooling Fan Clutch
If an engine isn’t getting the cooling it needs, performance suffers, and repair costs add up. The Horton VMaster Air-Sensing Engine Cooling Fan Clutch regulates cooling automatically, preventing overheating and keeping the engine at its ideal temperature. Without proper cooling, engines work harder than they should, leading to premature wear and higher fuel consumption. The Horton 9903000 engages only when necessary, reducing unnecessary load while providing the cooling required under heavy loads and extreme conditions.
Product Attributes
| Clutch Mounting Surface To Fan Mounting Surface | 2.01 IN |
| Fan Bolt Circle | 6 IN |
| FAN PILOT DIAMETER | 5 IN |
| Heavy Duty | FALSE |
| MOUNTING BOLT CIRCLE | 2.36 IN |
| MOUNTING PILOT DIAMETER | 1 IN |
| MOUNTING THREAD TYPE or NUMBER OF HOLES | 4 |
| OUTER (OVERALL) DIAMETER | 9.29 IN |
| Overall Length | 4.22 IN |
Additional Information
| Country of Origin (Primary) | DE |
| Harmonized Tariff Code (Schedule B) | 8483604040 |
| Harmonized Tariff Code (HTS) | 8483604040 |
| OEM's Part Number | 9803000 |
| Warranty Distance | 100000 |
| Warranty Distance UOM | DH |
| Warranty Special | 2500 Hours |
| Warranty Special UOM | TX |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| VMRS Code | 042003036 |
Part Interchanges
HORTON 9903000 Cross Reference
We have 1 alternatives for the 9903000 by HORTON:
Horton® is a world-renowned manufacturer of high-grade engine cooling solutions for the trucking industry for over 65 years. This company believes that improved airflow translates to better performance, reduced emissions, more significant fuel savings, and happy customers. Horton offers best-in-class fans, fan drives, and clutches for on-highway big rigs like heavy-, medium-, and light-duty trucks, R.V.s, buses, refuse vehicles, commercial vehicles, and other applications. This company also takes pride in its off-highway and heavy-duty products, including sweepers, agricultural tractors, mining trucks, aerial work platforms, excavators, generators, articulated vehicles, and industrial compressors. Made to operate in harsh environments, these Horton products withstand temperature extremes, dust, dirt, chemicals, as well as stop-and-go driving. For truck parts that consume less fuel, last longer, and run quieter, trust no other brand than Horton.
