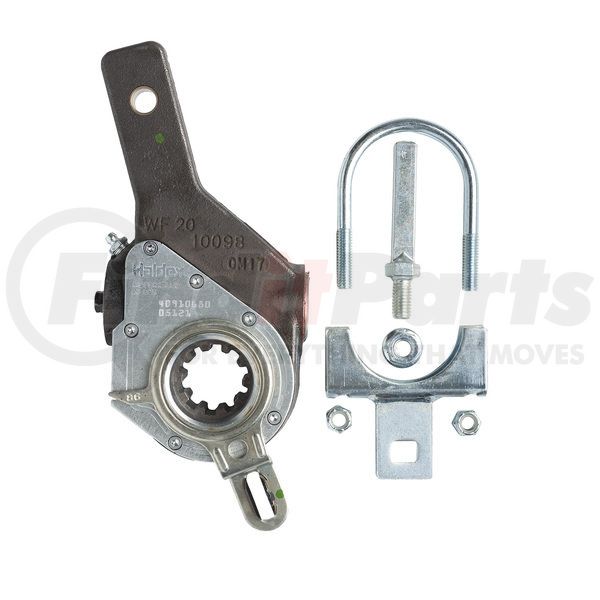

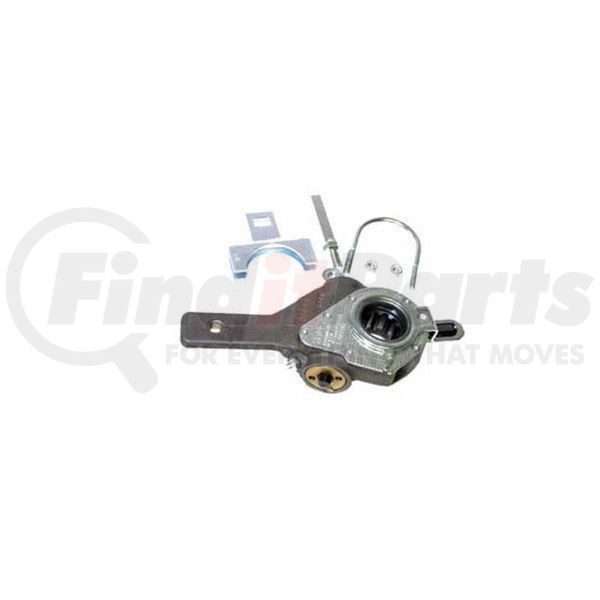

Name: Haldex 40010145 Air Brake Automatic Slack Adjuster - Rear, 6" Arm Length, 1.5" Spline Diameter, 10 Spline
SKU: 40010145
Price: 115.57 USD
Availability: InStock

HALDEX part description

Product Description

Auto Brake Adjusters, Drive Axle & Mack Truck App. Arm Length 6" Offset 0

Application Summary

Drive Axle Applications, Mack Truck Applications, Compatible with all major brand clevises

Features & Benefits

Covers more applications than competing adjusters in the market
Compatible with clevises from major OE and aftermarket brands
Easily accessible hex nut for easy adjustment and maintenance
Specially-crafted wormshaft provides added resistance against fatigue
Heavy duty gaskets and O-rings seal out moisture and contaminants
Fully-sealed design protects linkages against the elements for added durability
Helps prevent uneven tire and brake wear for added savings on maintenance and operating expenses
Heat-treated steel alloy internal gears provide increased strength and wear resistance

Haldex Automatic Brake Adjuster (ABA) Service Kit

Improve your ride’s stopping performance with the Haldex automatic brake adjuster (ABA) service kit. This kit already includes the air brake automatic slack adjuster and other components you need to service your truck’s air braking system.

Product Attributes

Anchor Bracket Style	Clamp
Arm Hole Diameter	1/2 in.
Arm Length	6 in.
Body Angle	16 DD
Freight Class	70
Grease Fitting Location	45 DD
Grease Fitting Type	Straight
Location	Rear
Pin Diameter	1/2 in.
Recommended Bracket Number	42710566
Recommended Use	Drive Axle Applications
Spline Diameter	1-1/2 in.
Spline Quantity	10

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708305090
Harmonized Tariff Code (HTS)	8708305090
Remanufactured Part	N
Warranty Distance	100000
Warranty Distance UOM	MI
Warranty Special	72 MO, 1 MIL MI=Haldex ABA/SABA (409 Part Number Prefix)(1), 36 MO, Unlimited MI=Haldex ABA (NL/429 Part Number Prefix)(1). 24 MO, 200K MI=Haldex ABA(8). 24 MO, 100K MI=Haldex ABA/S-ABA(3) & Non-Haldex ABA. 12 MO, 100K MI=Haldex ABA(9). See L20221W.pdf
Warranty Time	12
Warranty Time UOM	MO
UPC	00767653143415
VMRS Code	013002035

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.

HALDEX 40010145 Cross Reference

We have 10 alternatives for the 40010145 by HALDEX:
