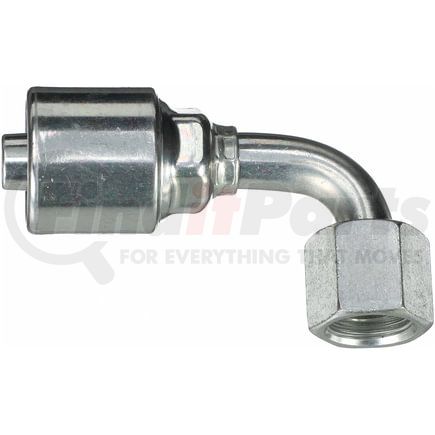

Gates G25179-0606 - 6G-6FJX90S
$2649
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female JIC 37 Flare Swivel - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
Product Attributes
| Nut Hex Size | 19 MM |
| Drop Length | .91 IN |
| Cut-Off Length | 1.99 IN |
| Length | 3.09 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Female |
| Bent Tube Angle | 90 |
| Swivel | Yes |
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - 90 Bent Tube |
| Industrial Description | 6G-6FJX90S |
| Thread Size | 9/16-18 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Inside Diameter | 9.5 MM |
| Drop Length | 23 MM |
| Cut-Off Length | 50.6 MM |
| Length | 78.6 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053323221 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
- Aeroquip 1AA6FJB6
- Parker 13943-06-06
- Parker 13943-6-6
- Parker 139HY-6-6
- Dayco 101215
- Dayco 108605
- Dayco 151605
- Weatherhead 06U666
- Weatherhead 06Z666
- Weatherhead 33606E-666
- Weatherhead 33606E666
- Caterpillar 124-2005
- Goodyear 13445-0606
- Goodyear 14445-0606
- Goodyear B2-JCFX90S-0606
- Goodyear UC-JCFX90S-0606
- NAPA G25179-0606
