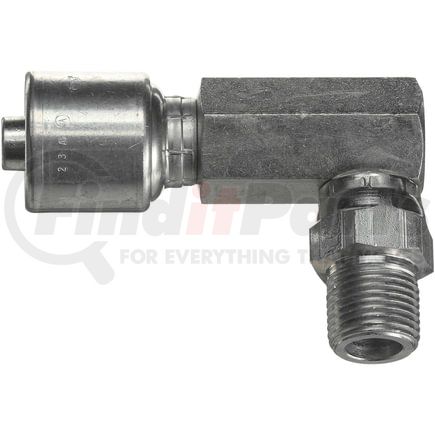

Gates G25107-0808 - Male Pipe Swivel - 90 Long Block (NPTF - Without 30 Cone Seat) (MegaCrimp)
$5249
MSRP: $52.62
Save: $0.13
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Male Pipe Swivel - 90 Long Block (NPTF - Without 30 Cone Seat) (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
Product Attributes
| Coupling Description | MegaCrimp Male Pipe Swivel - 90 Long Block (NPTF - w/o 30 Cone Seat) |
| Industrial Description | 8G-8MPX90L |
| Thread Size | 1/2-14 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 1 IN |
| Nut Hex Size | 1 IN |
| Drop Length | 2.06 IN |
| Cut-Off Length | 1.8 IN |
| Length | 3.27 IN |
| Seal Type | Thread Interference |
| Thread Angle | 60 |
| Gender | Male |
| Bent Tube Angle | 90 Long Block |
| Swivel | Yes |
| Inside Diameter | 12.7 MM |
| Drop Length | 52.3 MM |
| Cut-Off Length | 45.6 MM |
| Length | 83.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| UPC | 00072053396232 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
