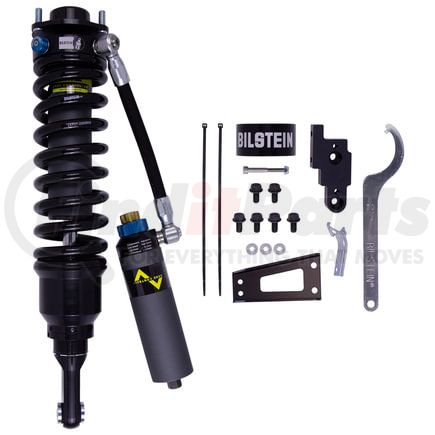

Bilstein 41-319581 - TACOMA; FR; EVO 8112 ADJ RES/JCO; M
$1,77599
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
BILSTEIN part description
TACOMA; FR; EVO 8112 ADJ RES/JCO; M
Product Description

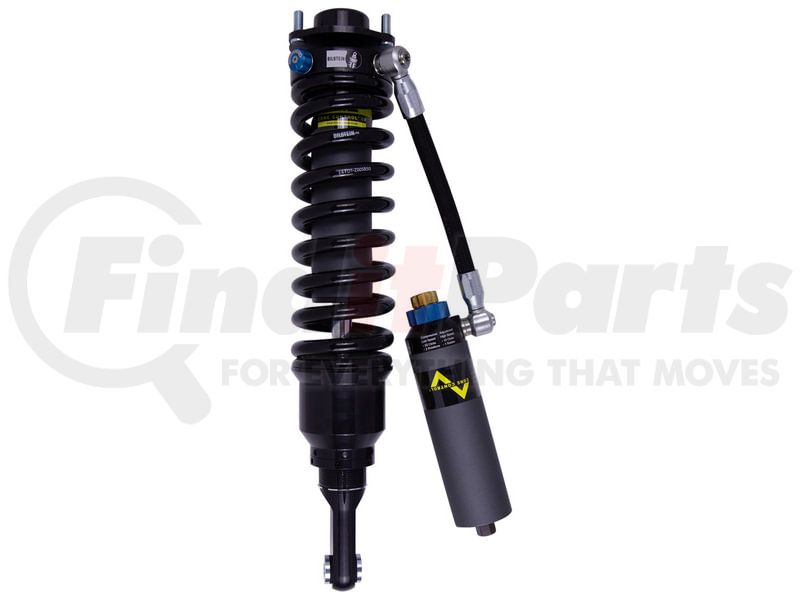

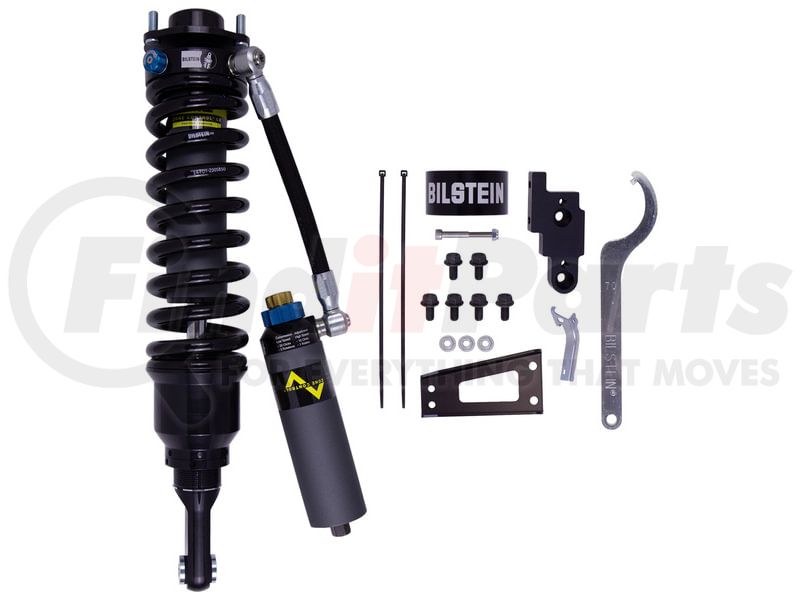

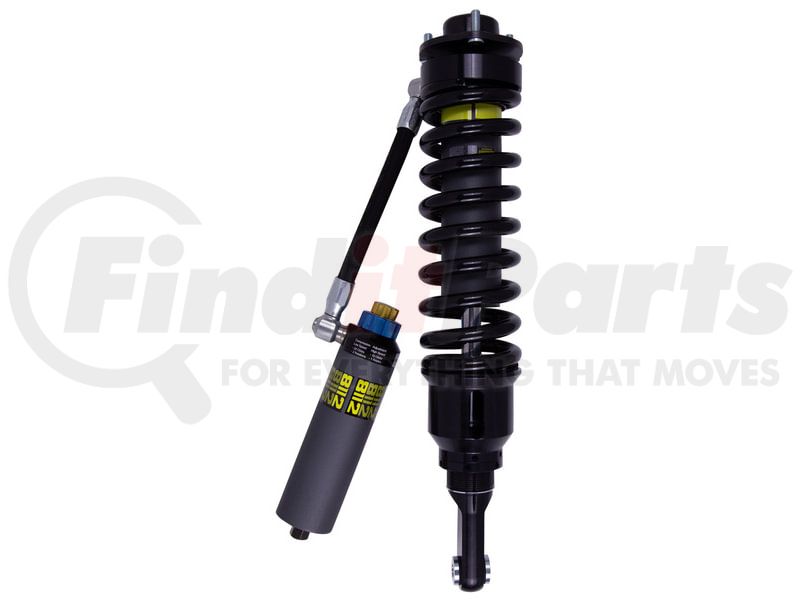

B8 8112 (ZoneControl CR DSA+) - Front Right Corner Module
Application Summary
Toyota Tacoma 2023-2005
Features & Benefits
- ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons

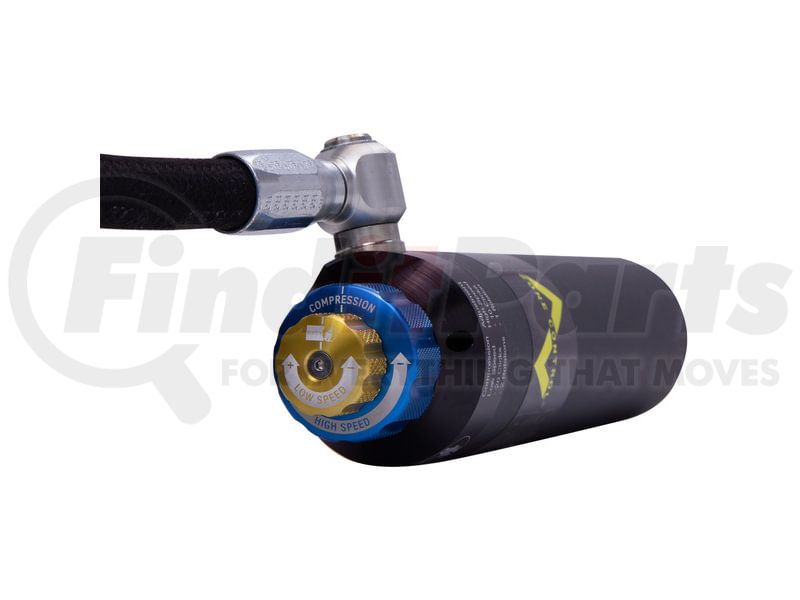

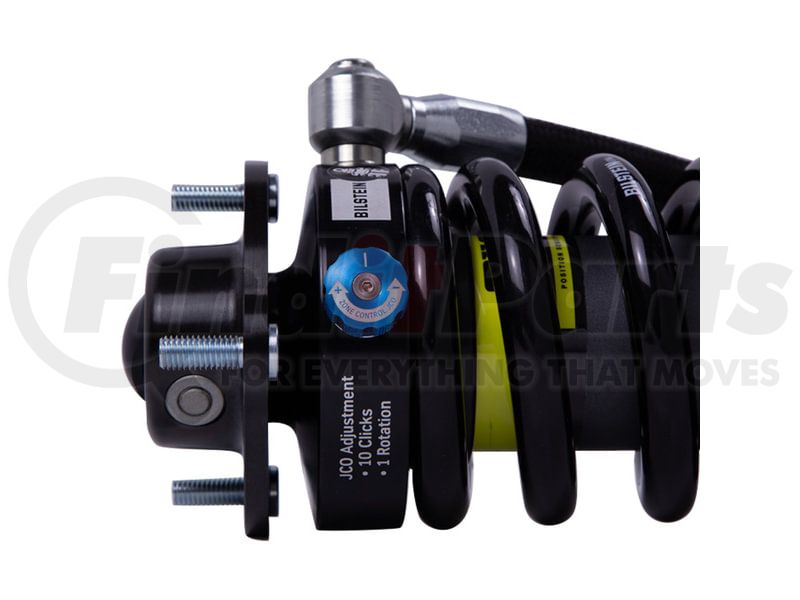

- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
- 60mm remote reservoir for increased oil capacity and cooling
Product Attributes
| Extended Length (mm) | 568.8 |
| Upper Mount Type | Special |
| Internal Design | Monotube |
| Body Diameter (id) | 60mm |
| Finish | Dampers: EVO Grey/Springs: Black |
| Segment | Light Truck |
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| Boot Included | No |
| Lower Mount Type | Eye 15.88mm |
| RESERVOIR | Yes |
| Collapsed Length (mm) | 442.6 |
| Body Material | Steel |
| Body Design | Smooth Body (Coilover) |
| Title | Bilstein Shock Absorbers |
| Adjustable Damping | Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO) |
| Collapsed Length (in) | 17.42 |
| Parttype | Shocks / Struts |
| Extended Length (in) | 22.39 |
| Spring Seat Included | Yes |
| Prop 65 (Y/N) | Y |
| Series | B8 8112 (ZoneControl CR DSA+) |
Additional Information
| MSDS Sheet Number | USA SDS_Shock_Air Spring_V2_EN.pdf |
| Remanufactured Part | N |
| Refurbished Part | N |
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00651860885810 |
Part Interchanges
About BILSTEIN Of America
Founded in 1873, BILSTEIN is a world leading manufacturer of monotube gas pressure shock absorbers. With their main headquarters located in Germany, BILSTEIN is an original equipment supplier to BMW, Jaguar, Mercedes-Benz, Porsche, GM, Chrysler, Ford, Toyota and many others. Today, BILSTEIN Aftermarket and Motorsports has grown to nearly 630 employees located in three locations around the United States and distributes more than 3,500 part numbers into the U.S. aftermarket. BILSTEIN operates within ThyssenKrupp Component Technologies Group.
Fits Vehicles
- Toyota Tacoma (2005-2023)
