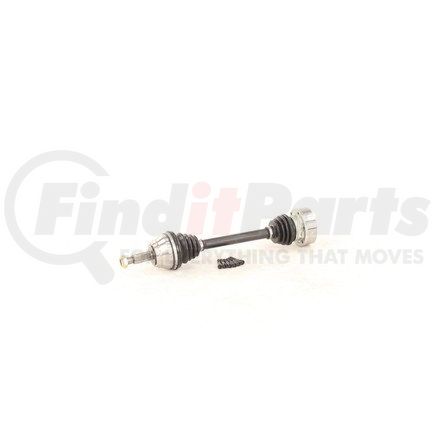

TrakMotive VW-8009 - CV Axle Shaft
- Part Number
- VW-8009
- Manufacturer
- TRAKMOTIVE
- Description
-
CV Axle Shaft
details
$10399
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
TRAKMOTIVE part description
Product Description
CV Axle Shaft
Product Attributes
| ABS Ring Tooth Count | 0 |
| ABS Ring Type | N/A |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | N/A |
| Axle Bolt Length (mm) | N/A |
| Axle Bolt Thread Size | N/A |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .56 |
| Axle Nut Height (mm) | 14 |
| Axle Nut Hex Size (in) | 1.67 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.33 |
| Axle Nut Length (mm) | 35 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M20x1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | .25 |
| Inboard Bolt Head Size (mm) | 6 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2.29 |
| Inboard Bolt Length (mm) | 58 |
| Inboard Bolt Thread Size | M8x1.25 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 22 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 20.87 |
| Overall Compressed Length (mm) | 530 |
| Axle Nut Socket Size | 30 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Outboard Joint Boot Material | Neoprene |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00844084097095 |
Part Interchanges
- ARC 80-3111
- EMPI 80-6802
- Car Components Technologies (CCT) 7515
- Mevotech CV7011
- Carquest 410435
- Carquest 800435
- USA Industries AX-4548
- American Remanufactured 40-18835
- Diversified Shafts Solutions 2231N
- Drive Tech America VW-8835
- Fenwick CV4548
- CARDONE Reman 60-7005
- CARDONE Reman 66-7005
- CARDONE Reman MP7005
- IMC 40754007
- IMC 40754053
- Carquest Premium AC NCV72015
- OEM Part Number 171407271S
- OEM Part Number 171407271T
- OEM Part Number 191407271K
- OEM Part Number 191407271S
- Altrom Group 652705
- ODM VW-8-8511
- TrakMotive VW-8009
- 410435
- NCV72015
- 75983
- MX-18835
- 349009
Fits Vehicles
- Volkswagen Corrado (1990-1992)
- Volkswagen Scirocco (1985-1989)
- Volkswagen Jetta (1985-1992)
- Volkswagen Golf (1985-1992)
- Volkswagen Cabriolet (1985-1993)
