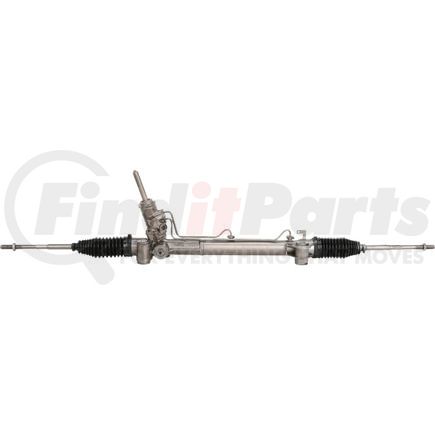

Maval 95507M - Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95507M
$33299
+$200.00 Core Deposit
Total price w/ core: $532.99
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MAVAL part description
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95507M
Product Description
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95507M
Features & Benefits
- Housings, shafts and critical components are thoroughly cleaned using the latest technology to greatly reduce the potential for contamination, and inspected thoroughly to detect any cracks or leaks
- Shafts and housings are polished, bearings and snap rings are replaced to restore rack performance and eliminate leaks
- Electronic solenoids are tested to verify proper performance
- All seals, PTFE and O-rings are replaced with new, OE-equivalent components to prevent leaks, ensure longevity and reliability
- A protective paint coating is applied, bellows and fasteners are high-quality components to protect against corrosion, rust and optimize the longevity of the unit
- Tested on our state-of-the-art test equipment to simulate actual operational conditions, inspecting for leaks, noises, and overall functionality to ensure the unit meets or exceeds OE specifications
- 100 percent centered after testing to reduce installation time
Product Attributes
| Casting Material | Aluminum |
| Distance Between Mounting Holes | 469.9 MM |
| Distance Between Mounting Holes | 18.5 IN |
| Hose Port Type | O-Ring |
| Input Shaft Diameter | 0.78 IN |
| Input Shaft Diameter | 19.74 MM |
| Input Shaft Length | 98.3 MM |
| Input Shaft Length | 3.87 IN |
| Mounting Hole Quantity | 2 |
| Pressure Port Thread Size | M18 x 1.5 |
| Rack Length | 51.88 IN |
| Rack Length | 1317.63 MM |
| Return Port Thread Size | M16 x 1.5 |
| Thread Length | 2.48 IN |
| Thread Length | 62.99 MM |
| Tie Rod Ends Included | Yes |
| Total Turns Lock To Lock | 2.75 |
Additional Information
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708940000 |
| Harmonized Tariff Code (HTS) | 8708940000 |
| NAFTA Preference Criterion Code | B |
| UPC | 00843613112681 |
Fits Vehicles
- Cadillac SRX (2010-2016)
