STANDARD IGNITION part description

Product Description

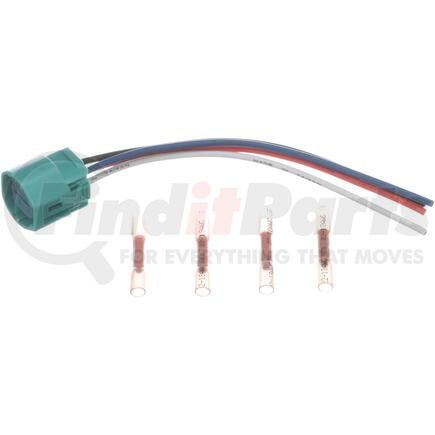

Alternator Electrical Connector

Features & Benefits

  • Heat shrink butt connectors included
  • Each part has high-quality direct replacement electrical connector that eliminates the need for a harness, replacing only the damaged connector, for a cost effective repair solution
  • The terminals are manufactured with high grade materials such as copper alloy, brass, and phosphor bronze.
  • The Housing is fabricated using polyamide resins. All of the materials together provide the connectors with prolonged life and superior performance in harsh environments.
  • All electrical connectors are 100% tested for proper mechanical and electrical fit, form and function.
  • Offering thousands of high-quality pigtails and sockets for nearly every electrical job.

Product Attributes

Connector Gender Male
Connector Quantity 1
Connector Shape Square
Gauge 18 ga.
Harness Length - cm 17
Harness Length - inches 7
Housing Length (in) 1
Terminal Gender Female
Terminal Quantity 4
Terminal Type Blade
Wire Quantity 4
Bend Angle (Deg.) 0
Harness Length (mm.) 170
Water Resistant No
Weatherproof Sealed Yes
Wire Gauge (ga) 18

Additional Information

Country of Origin (Primary) TW
Harmonized Tariff Code (HTS) 8536908585
Warranty Distance 36000
Warranty Distance UOM MI
Warranty Time 36
Warranty Time UOM MO
UPC 00033086610306

Part Interchanges

Fits Vehicles

  • Honda Fit (2007-2009)
  • Toyota Tacoma (2005-2010)
  • Toyota Yaris (2007-2015)
  • Toyota Tundra (2003-2007)
  • Toyota 4Runner (2003-2004)
  • Honda Prelude (1997-2001)
  • Honda S2000 (2000-2009)
  • Honda Odyssey (1998-1999)
  • Honda Accord (1998-2002)
  • Honda CR-V (1997-2006)
  • Honda Civic del Sol (1996-1997)
  • Honda Civic (1996-2011)
  • Acura TL (1997-1998, 2000-2003)
  • Acura RSX (2002-2006)
  • Acura Integra (1996-2001)
  • Acura CL (1998-1999, 2001-2003)
