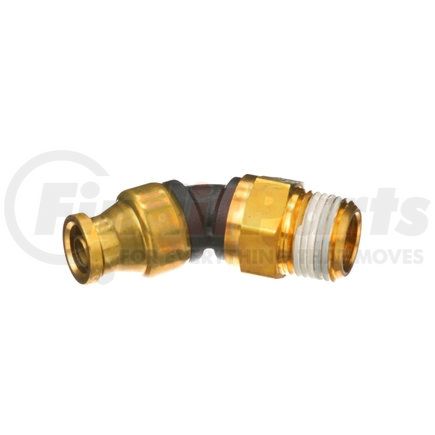

Gates G31122-0604C - Composite Air Brake to Male Pipe Swivel - 45
$1349
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Composite Air Brake to Male Pipe Swivel - 45
Features & Benefits
- Internal and external machined threads for connection to ports. Machining retains collet, tube support and O-Ring
- Tube support prevents tube collapse during severe loading conditions
- Collet teeth grip the tube, holding it firmly in the fitting
- Internal O-Ring provides a seal and necessary interference between tube and fitting body
Product Attributes
| Coupling Description | Composite SureLok Composite Air Brake to Male Pipe Swivel - 45 |
| Industrial Description | 6CAB-4MPX45 |
| Thread Size | 1/4-18 |
| Outside Diameter | .375 IN |
| Nut Hex Size | 19 MM |
| Drop Length | 1.18 IN |
| Length | 1.09 IN |
| Maximum Working Pressure | 150 PS |
| Temperature Rating | -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C) |
| Material | High Impact Nylon & Brass |
| Seal Material | O-Ring - Buna N, Thread Sealant - ST-3 |
| Drop Length | 30 MM |
| Length | 27.7 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7412200015 |
| UPC | 00770075811800 |
| VMRS Code | 059032033 |
| UNSPSC | 27121700 |
