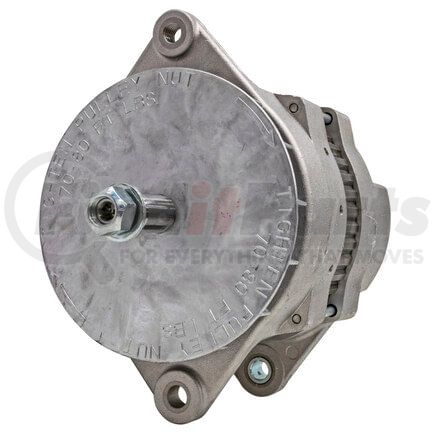

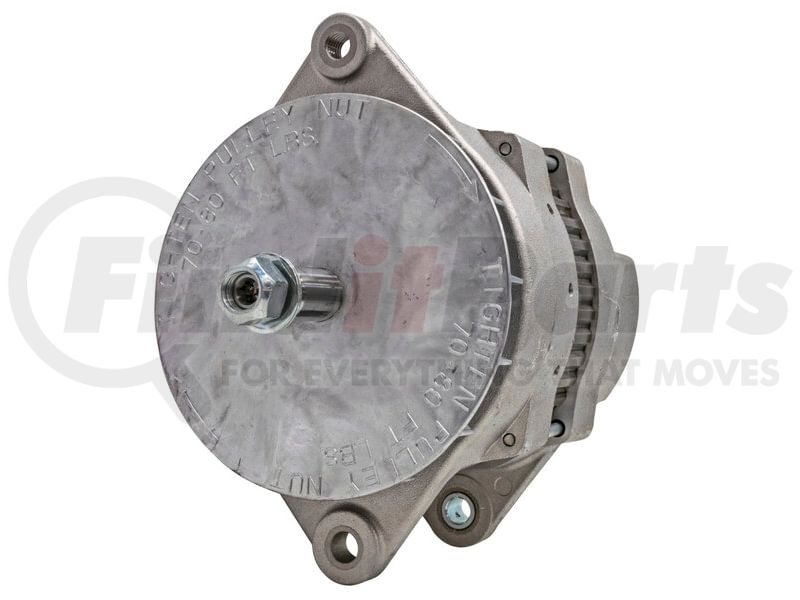

Name: Leece Neville BLD3314GH High Output Alternator
SKU: bld3314gh
Price: 790.49 USD
Availability: InStock

LEECE NEVILLE part description

California Proposition 65 Warning

WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)

Technical Specifications

Sales number	BLD3314GH
Series number	BLD/P
Notes	LAMP DRIVER, VOLTAGE ADJUSTMENT New, Self Excite/ Lamp terminal Fix circle (Mount): 108mm Fix circle (Adjuster): 108mm Bracket angle: 0° Cut in speed: 1300, Max speed: 8000 Weight: 14.51kg
System voltage	24
Output	140
Mounting style	J-180
Dimensions in	INCHES
Rotation	CLOCKWISE
Housing coating	RAW
UL Approved	No
Positive stud size	5/16-24
Negative stud size	1/4-28
Rectifier location	INTEGRAL
Shaft diameter	7/8 INCH
Excitation type	Self Excite
Regulator location	Integral
Regulator number	8RG3078
Diode trio	No
Pulley included	No
Lamp driver	Yes
Adjustable regulator	Yes
Remote sense	No
Smart check	No
Batteryless	No

Volts	24
Amp	140

Product Description

High Output Alternator

A division of Prestolite Electric Incorporated, Leece-Neville® is a well-known supplier of starters, alternators, and other electrical equipment for transportation, industrial, and military applications. This brand shares the same "Easy to do Business" philosophy with Prestolite and the same manufacturing and distribution centers in America, Europe, Canada, China, Hong Kong, and Mexico. With an industry history that dates back to 1919, Leece-Neville has its glory days in the production of electrical starters, voltage regulators, and generators for trucks, airplanes, as well as industrial and marine equipment during the World War II. In July 1987, Leece-Neville was acquired by Prestolite Electric, which widened its reach to the international market and made the Leece-Neville name globally recognized.
