PARKER HANNIFIN part description

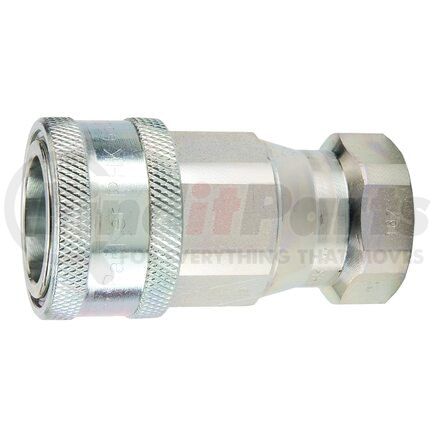

6600 Series Couplers (hydraulic) up to 5000 psi, connect with ISO 7241 series A, 6600 Series Nipples.
Parker's 6600 Series have double shut-off poppet valves and are interchangeable with other quick disconnects complying with ISO 7241 series A. These steel couplers and nipples are available in a range of sizes for applications with pressure ranges up to 5000 psi.

Technical Characteristics:
• Sizes: 1/4” – 1”
• Materials: Steel
• Port Ends: Female NPTF, Female ORB
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
• Other Coupler options include: Sleeve Lock

Markets:
• Construction
• Mobile equipment
• Agriculture

Features/Benefits:
• Globally interchangeable with other manufacturer's quick couplings complying to ISO 7241 series A
• Steel coupler sleeve is hardened for durability
• Optional sleeve lock helps to prevent accidental disconnection

Applications:
• Hydraulic fluid transfer
• Truck trailer connections
• Mobile applications
• Attachments

Specifications

Maximum Working Pressure (psi) 4000
Body Size (inch) 1/2
Flow Rate (GPM) 12
Seal Material Nitrile
Media Hydraulic
Industry Standards ISO 7241-1 series A
Coupling Half Coupler
Minimum Working Temperature (F) -40
Maximum Working Temperature (F) 250
Valve Style Poppet
Sleeve Type Manual sleeve
Locking Mechanism Locking balls
Body Material Steel
Thread Style Female
Connection Type ORB
Plating Zinc with clear trivalent chromate
Application Hydraulic | general purpose
