PETERSON LIGHTING part description

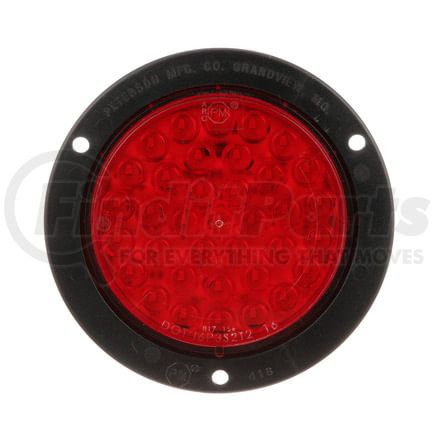

817R-36/818R-36 Series Piranha® LED 4" Round LED Stop, Turn and Tail Lights, AMP

Peterson Lighting Piranha® 4" Round LED Stop, Turn & Tail Light

For enhanced trucking safety, equip your truck with a high-quality Peterson Lighting Piranha® 4" round LED stop, turn & tail light. This product effectively combines all three crucial functions—stop, turn, and tail— into one industry-standard light.

Features & Benefits

  • An original flange-mount 36-diode light with white diodes behind the red lens
  • Comes with an AMP-compatible connector and flange that is integrated into the housing to form a single unit
  • Provides voltage protection and consistent light output over the entire voltage range with its regulated design
  • Product’s operating range is 9 to 16 volts
  • Does not have to be “Top” positioned to meet FMVSS 108 requirements
  • Engineered to meet the needs of any stop tail turn lighting situation

Product Description

LED STOP/TURN/TAIL, ROUND, FLANGE 4" 12V

Features & Benefits

  • 36 diodes.
  • Available in retail-friendly Viz Pack.
  • Defender harness & lighting system approved.
  • Lumenx® lens and circuitry.
  • Made in USA.
  • Voltage Regulated.
  • Original 36-diode Piranha multi-diode lens look.
  • AMP-compatible connector integrated into housing.
  • Advanced white diodes behind red lens.
  • 818-36 has flange welded to light, forming a single unit.
  • 817-36 has skirted weld joint for added protection against moisture.
  • 9–16 volt operating range.
  • Regulated design provides voltage protection and consistent light output over a wide voltage range.
  • Does not require “Top” positioning to meet FMVSS 108 standard.
  • V817KR-36 Viz-Pack kit includes light, grommet and 417-49 plug.
  • See Peterson Master Catalog page 14 for clear lens version.
  • See Peterson Master Catalog page 38 for matching amber turn signal.

417-49: hardshell plug (poly pack - std qty 6)

Product Attributes

Bulb Technology LED
Bulb/diode Count 36
California Proposition 65 Required Y
Container Type poly bag
Diameter 4.25 IN
Family Piranha
Height 4.25 in
Integral Reflex N
Length 4.25 in
Lens Color red
Light Color red
Marine Use Y
Maximum Voltage 16 Volts
Minimum Voltage 9 Volts
Mounting Type grommet
Multi-volt N
Regulatory Compliance DOT
Shape round
Termination AMP
Voltage 12 Volts
Width 1.42 in

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8512204000
UPC 00044464997919
VMRS Code 034002059
