PETERSON LIGHTING part description

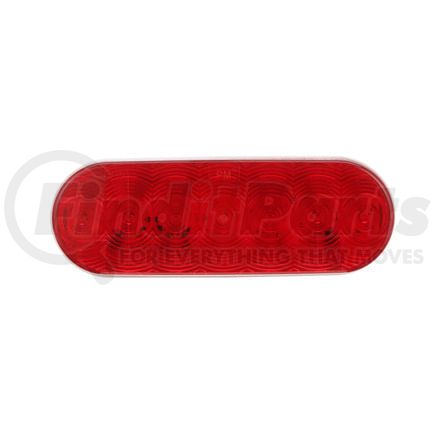

820R-7/823R-7 LumenX® Oval LED Stop, Turn and Tail Light, AMP

Peterson Lighting LumenX® Oval LED Stop, Turn & Tail Light

For enhanced trucking safety, equip your truck with a high-quality Peterson Lighting LumenX® oval LED stop, turn & tail light. This product effectively combines all three crucial functions—stop, turn, and tail— into one industry-standard light.

Features & Benefits

  • A grommet-mount 7-diode oval LED with white diodes behind the red lens
  • With a fully illuminated lens because of advanced optics
  • Comes with an AMP-compatible Piranha® connector that is integrated into the housing
  • Provides voltage protection and consistent light output over the entire voltage range with its regulated design
  • Product’s operating range is 9 to 16 volts
  • Designed to meet FMVSS 108 requirements in vertical, horizontal, or any 360-degree position
  • Engineered to meet the needs of any stop tail turn lighting situation

Product Description

LED STOP/TURN/TAIL, OVAL, AMP, GROMMET-MOUNT, 6.50"X2.25"

Features & Benefits

  • 7 diodes.
  • Defender harness & lighting system approved.
  • Lumenx® lens and circuitry.
  • Made in USA.
  • Voltage Regulated.
  • White diodes behind red lens.
  • Advanced optics fully illuminate lens.
  • AMP-compatible connector integrated into housing.
  • 823-7 has flange welded to light, forming a single unit.
  • 820 kit includes light, grommet and 817-49 plug.
  • 823 kit includes light and 817-49 plug.
  • 823RTL-7 version has integral narrower flange with recessed lens and two mounting holes positioned at ends for narrower rail applications.
  • 9–16 volt operating range.
  • Regulated design provides voltage protection and consistent light output over a wide voltage range.
  • Meets FMVSS 108 req. in horizontal, vertical or any 360° position.

421-18: grommet (poly pack - std qty 12)

Product Attributes

Bulb Technology LED
Bulb/diode Count 7
California Proposition 65 Required Y
Container Type poly bag
Family LumenX
Height 2.31 in
Integral Reflex N
Length 6.5 in
Lens Color red
Light Color red
Marine Use Y
Maximum Voltage 16 Volts
Minimum Voltage 9 Volts
Mounting Type grommet
Multi-volt N
Regulatory Compliance DOT
Shape oval
Termination AMP
Voltage 12 Volts
Width 1.45 in

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8512204000
UPC 00044464993256
VMRS Code 034002059
