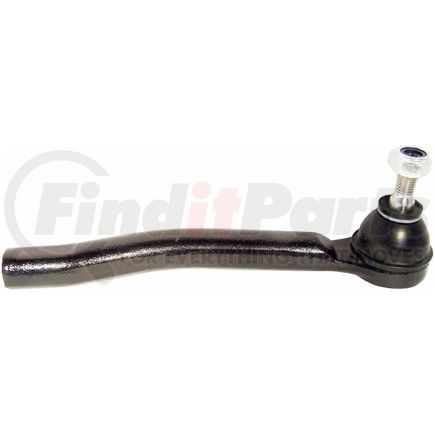

DELPHI TA2677 - Steering Tie Rod End - RH, Outer, Non-Adjustable, Steel, Non-Greaseable
$2699
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
DELPHI part description
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including Carbon black, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Tie Rod End
Product Attributes
Position(s) | Right Outer |
Item Grade | Standard Replacement |
Color | Gray |
End 2 Gender | Female |
Pre-Greased | Yes |
Grease Fitting Included | No |
Dust Boot Included | Yes |
Width | 44.7 MM |
Type | Bent |
Mounting Hardware Included | Yes |
End 2 Thread Diameter | 0.472 IN |
End 2 Thread Diameter | 12.0 MM |
Height | 68.1 MM |
Housing Material | Steel |
36 | 0.866 IN |
Tube Diameter | 22.0 MM |
Adjustable | No |
Greasable | No |
Weight | 1.58 lb |
Cone Outside Diameter | 14.7 MM |
Bearing Material | Plastic |
End 1 Thread Direction | Clockwise (Right) |
End 2 Thread Direction | Clockwise (Right) |
Stud Type | Threaded |
End 2 Thread Pitch | 1.25 MM |
Length Stud Center to End | 7.579 IN |
Length Stud Center to End | 192.5 MM |
Dust Boot Material | Choloroprene Rubber (CR) |
Tie Rod Material | Steel |
End 1 Thread Diameter | 0.394 IN |
End 1 Thread Diameter | 10.0 MM |
Additional Information
Harmonized Tariff Code (Schedule B) | 8708998175 |
Country of Origin (Primary) | TR |
Harmonized Tariff Code (HTS) | 8708998180 |
Warranty Special | Limited Lifetime |
Warranty Special UOM | LF |
UPC | 00689604248997 |
VMRS Code | 015004019 |
UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Nissan Kicks (2018-2019)
- Chevrolet City Express (2015-2018)
- Nissan NV200 (2013-2019)
- Nissan Sentra (2013-2019)
- Nissan LEAF (2011-2019)
- Nissan Juke (2011-2017)
