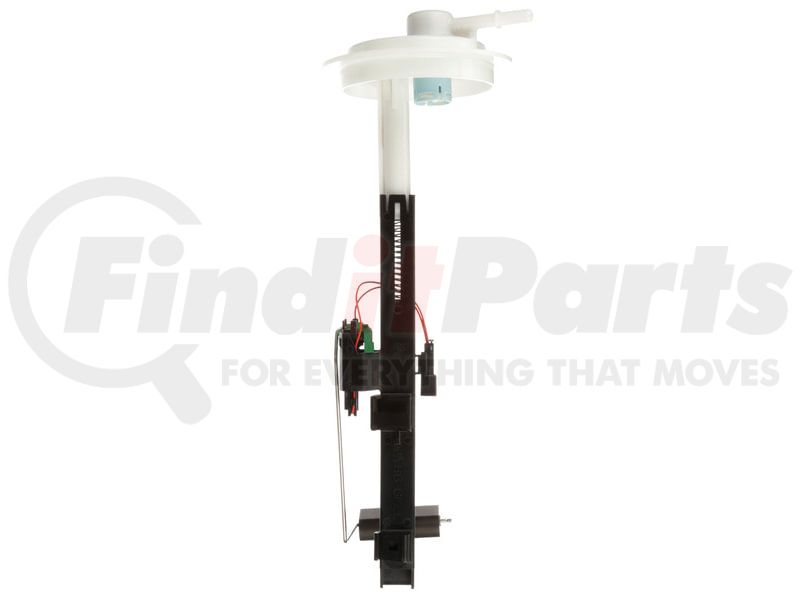

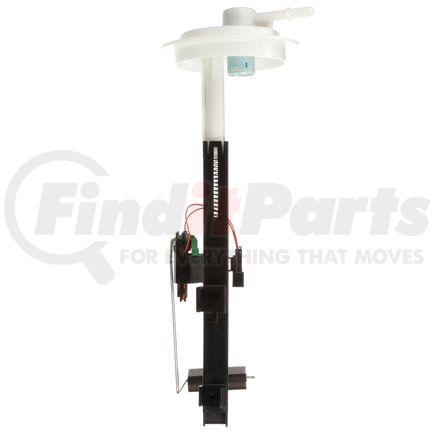

DELPHI FT4016 - Fuel Transfer Unit
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
DELPHI part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to Lead, a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Fuel Transfer Unit
Product Attributes
| Package Contents | Fuel Transfer Unit w/Float Arm, Seal, Instruction Sheet |
| Vapor Pressure Sensor | No |
| Item Grade | Standard Replacement |
| Fuel Level Sender Assembly Included | Yes |
| Position(s) | Left, Right. For the position specific to your vehicle, refer to the Applications. |
| Outlet Outside Diameter | 0.375 IN |
| Fuel Type | Gas |
| Regulator Included | No |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 2 |
| Terminal Gender | Male |
| Strainer Included | No |
| Outlet Type | Quick Connect |
| Outlet Quantity | 1 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 125.0 82 |
| Resistance Ohms Full | 20.0 82 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604265772 |
| VMRS Code | 044001089 |
| UNSPSC | 25172411 |
Part Interchanges
Fits Vehicles
- Pontiac Torrent (2006)
- Chevrolet Equinox (2005-2006)
- Saturn Vue (2004-2007)
