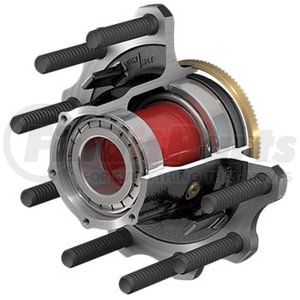

CONMET 10034665 - ASSY PRESET ROTR R-SER DRIV HP10 ABS
$87049
MSRP: $1,143.02
Save: $272.53
In stock
limited availability at this price!
. Learn more
CONMET part description
California Proposition 65 Warning
California Proposition 65 Warning
| Hub Assembly Data | |
| Hub Assembly | 10034665 |
| Aftermarket Assembly | 10083227 Compare |
| Status | Active |
| Assembly Type | PreSet Hub & Rotor Assembly |
| Axle Location | Drive |
| Axle Name | R |
| Axle-Specific Specification | Alum Disc OD Pilot |
| Mounting | Hub Piloted - 10 Studs |
| ABS | Yes |
| ABS Characteristic | Has Stamped ABS Ring |
| Wheel Stud Bolt Circle Diameter | 285.75 mm |
| Wheel Stud | 102188 |
| Wheel Stud Standout | 2.59" |
| Detailed On | 10034663 |
| Hub Rating | 11,500 LBS 5,216 kg |
| Brake Drum Type | Disc Rotor |
| Bearing Set | _-stand |
| Fill Hole | 9/16Ó-18 UNF Ñ #6 SAE J1926 |
| Fill Plug | No |
| ABS Offset | 2.33" |
| Hub Offset | 2.00" |
| Axle Stud Standout | 1.75" |
| Axle Stud Diameter | 5/8Ó |
| Weight | 136 LBS 62 kg |
| Machining | 10033101 |
| Machined Flange Thickness | 1.50" |
| Casting | 10016328 |
| Casting Material | A356.0-T61 Aluminum |
| Seal Vendor | SKF |
| Bill of Materials Ñ 10034665 Ñ PreSet Hub & Rotor Assembly | |||||
| Item | Description | Material | Qty | Unit | Type |
|---|---|---|---|---|---|
| 10020145 | CAP SCREW, HEX HEAD | M16 X 1.5 X 50MM, CLASS 6g | 10 | EA | Cap Screw, Hex Head, Rotor Attachment |
| 10016580 | FLAT WASHER | M16, HARDENED STEEL | 10 | EA | Washer on Disc Rotor Cap Screws |
| 10020109 | DISC BRAKE ROTOR - ConMet | 10020108 ROTOR, CAST | 1 | EA | Brake Rotor - Machined |
| 10020108 | DISC BRAKE ROTOR - CAST | SEE DRAWING 10020108 | 1 | EA | Brake Rotor - As Cast |
| 10033114 | PRESET HUB ASSEMBLY | SEE DRAWING 10033114 | 1 | EA | Hub Assembly |
| 10014425 | SHIPPING BUNGEE-DISC | PLASTIC DISC & NYLON BUNGEE | 1 | EA | Shipping Bungee-Disc for PreSet/LMS |
| 10020642 | 5/8" AXLE STUD CAP | PLASTIC | 2 | EA | Cap for Axle Studs to Affix Shipping Cap |
| 10009773 | SHIPPING CAP | PLASTIC | 1 | EA | Shipping Cap |

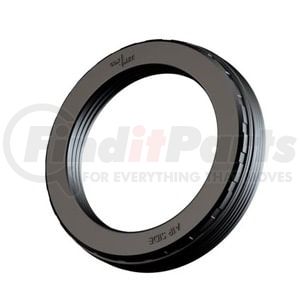

| 10008717 | SEAL (PRESET) | SKF SCOTSEAL+ XL 550605 | 1 | EA | Seal |
| 103593 | BEARING SPACER | STEEL | 1 | EA | Bearing Spacer |
| 103600 | CONE, BEARING - OUTBOARD | 1/2-STAND; STEEL | 1 | EA | Bearing Cone |
| 103598 | CONE, BEARING - INBOARD | 1/2-STAND; STEEL | 1 | EA | Bearing Cone |
| 103705 | RING, ABS | MILD STEEL | 1 | EA | ABS Tone Ring |
| 103430 | STUD, DOUBLE-ENDED | 5/8"-11UNC / 5/8"-18UNF | 8 | EA | Double-Ended Stud |
| 102188 | STUD, WHEEL - PROP CL 10.9 | M22 X 1.5MM X 4.09 LG | 10 | EA | Wheel Stud |
| 103601 | CUP, BEARING - OUTBOARD | 1/2-STAND; STEEL | 1 | EA | Bearing Cup |
| 103599 | CUP, BEARING - INBOARD | 1/2-STAND; STEEL | 1 | EA | Bearing Cup |
| 10033101 | HUB, MACHINED | 10016328 HUB, CAST ALUM | 1 | EA | Hub Machining |
| 10016328 | HUB, CASTING | A356-T6 ALUMINUM | 1 | EA | Hub Casting |
