ARNOTT INDUSTRIES part description

Product Description

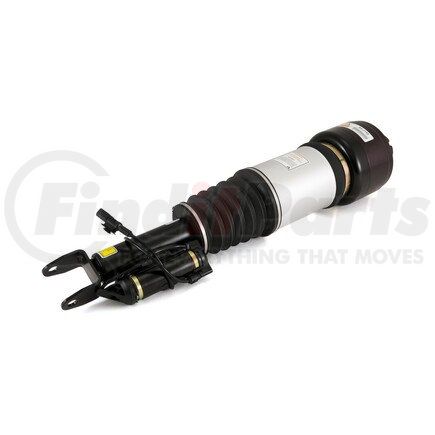

Suspension Strut Assembly

Features & Benefits

  • Multi-Ply ContiTech Air Spring Bladder
  • Pre-Assembled for Easy Installation
  • Detailed Installation Manual Available
  • Designed & Assembled in the USA

Product Attributes

Extended Length 586.5 MM
Compressed Length 464 MM
Boot/dust Shield Included Yes
Adjustable Damping No
Adjustable No
Travel Length 122.5 mm
Protective Aluminum Can Yes
Air Bladder Material Yes
Air Ride Suspension Yes
BOOT COLOR Black
Heavy Duty Crimping Rings Yes
Springs Included N/A
Spring Rate Type Progressive
Spring Seat Included Yes
Air Adjustable Yes
Body End Measuring Point Center Eye
Shock/strut Design Twin-tube
Internal Construction Type Twin-tube
Contents Air Shock Assembly; Mounting Hardware
Air Bladder Yes
Bearing Plate Included No
Internal Damper Type Hydraulic
Lower Mounting Isolator Included No
Mounting Hardware Included Yes
Progressive Spring Rate Yes
Shock Spring Assisted Yes
Spring Isolators Included Yes
Coil Over Springs Included N/A
Dust Shield Material N/A
Gas Charged Yes
Lower Mount Type Clevis
Shock Absorber Rod End Measuring Point Shoulder of Stud
Upper Mount Type Stud
Upper Mounting Isolator Included Yes

Additional Information

Warranty Special 2 Year
Warranty Special UOM TX
Country of Origin (Primary) US
Harmonized Tariff Code (HTS) 8708801600
Harmonized Tariff Code (Schedule B) 8708800050
UPC 00815710013390
UNSPSC 25172007

Part Interchanges

Fits Vehicles

  • Mercedes-Benz E280 (2007-2009)
  • Mercedes-Benz CLS350 (2007-2011)
  • Mercedes-Benz E550 (2007-2009)
  • Mercedes-Benz CLS550 (2007-2011)
  • Mercedes-Benz E350 (2006-2009)
  • Mercedes-Benz CLS500 (2005-2011)
  • Mercedes-Benz E500 (2003-2009)
  • Mercedes-Benz E320 (2003-2009)

Arnott Industries® is the market leader in aftermarket air suspension products for trucks, SUVs, and luxury cars. The brand's extensive line of high-quality products for more than twenty vehicle makes are proudly engineered and assembled in its nearly 300,000-sq. ft. headquarters in the USA. Arnott Industries Inc. is ISO 9001:2015 and TUV Rheinland Certified, assuring customers of products that are built to last.  Arnott's brand-new and remanufactured products deliver OE quality and fit. Included in the list of parts that deliver the Arnott advantage are new and remanufactured air struts and shocks and brand-new coil spring conversion kits. The brand also carries ride height sensors, dryers, air springs, air suspension compressors, solenoid valve blocks, and many other suspension parts and accessories.
