DEXTER AXLE part description

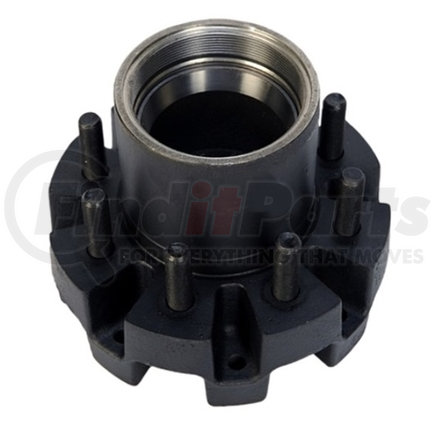

8-214-8 Dexter 12k HD hub with races.

  • Hub only with races installed
  • Fits Dexter 12k axles that use 3984(2.625" ID) and 28682(2.25" ID) bearings
  • Bearings, seal, cap, wheel retaining ring, and lug nuts are sold separately
  • 9-28-1(12-1/4" x 5") drum and 7-244 mounting bolts are sold separately

Please refer to the diagram Image for these measurements



To determine the bolt circle on hubs or wheels with an even number of studs, measure center-to-center of studs directly across from each other on the diameter(bolt patterns are always measured in inches). Example: 8 on 6 1/2 would mean 8 studs with 6 1/2” center-to-center diameter.

DEXTER AXLE 8-214-8 Cross Reference

We have 1 alternatives for the 8-214-8 by DEXTER AXLE:

For more than 50 years, Dexter Axle® has been a global leader in developing and manufacturing safe and reliable trailer components for recreation vehicles, utility trailers, and specialty trailers. It is also a trusted brand in agricultural, manufactured housing, and marine markets. Headquartered in Elkhart, Indiana, and established in 1960, Dexter owns 14 manufacturing facilities across the US and Canada. Metallurgical evaluations and computer-equipped tests are also done to ensure remarkable product quality and performance. An ISO 9001:2015 certified brand, Dexter is still propelled by the same principles it has since it was founded: superior quality, constant improvement, and outstanding customer service.
