SEALED POWER L-2323F - "Speed Pro" POWERFORGED Engine Piston Set
- Part Number
- L-2323F
- Manufacturer
- SEALED POWER
- Description
-
"Speed Pro" POWERFORGED Engine Piston Set
details
$72392
Package Price for 8 Units
@ $90.49 per unit
MSRP: $1,299.52
Save: $575.60
In stock
limited availability at this price!
SEALED POWER part description
California Proposition 65 Warning
Product Description

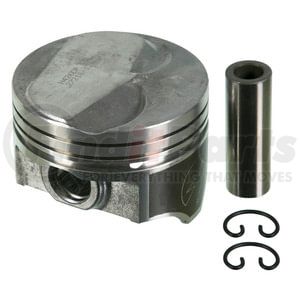

Engine Piston Set
Application Summary
1968-1970 Oldsmobile 442 (Liter: 7.5 & Engine(cc): 7456 & Engine(ci): 455 & Cylinder: 8 & Block: V & Bore(in): 4.13 & Bore(mm): 104.8 & Stroke(in): 4.25 & Stroke(mm): 108.0); 1968-1970 Oldsmobile 98 (Liter: 7.5 & Engine(cc): 7456 & Engine(ci): 455 & Cylinder: 8 & Block: V & Bore(in): 4.13 & Bore(mm): 104.8 & Stroke(in): 4.25 & Stroke(mm): 108.0); 1968 Oldsmobile Delmont 88 (Liter: 7.5 & Engine(cc): 7456 & Engine(ci): 455 & Cylinder: 8 & Block: V & Bore(in): 4.13 & Bore(mm): 104.8 & Stroke(in): 4.25 & Stroke(mm): 108.0); 1970 Oldsmobile F85 (Liter: 7.5 & Engine(cc): 7456 & Engine(ci): 455 & Cylinder: 8 & Block: V & Bore(in): 4.13 & Bore(mm): 104.8 & Stroke(in): 4.25 & Stroke(mm): 108.0); 1970 Oldsmobile Cutlass (Liter: 7.5 & Engine(cc): 7456 & Engine(ci): 455 & Cylinder: 8 & Block: V & Bore(in): 4.13 & Bore(mm): 104.8 & Stroke(in): 4.25 & Stroke(mm): 108.0); 1968-1970 Oldsmobile Delta 88 (Liter: 7.5 & Engine(cc): 7456 & Engine(ci): 455 & Cylinder: 8 & Block: V & Bore(in): 4.13 & Bore(mm): 104.8 & Stroke(in): 4.25 & Stroke(mm): 108.0); 1968-1970 Oldsmobile Toronado (Liter: 7.5 & Engine(cc): 7456 & Engine(ci): 455 & Cylinder: 8 & Block: V & Bore(in): 4.13 & Bore(mm): 104.8 & Stroke(in): 4.25 & Stroke(mm): 108.0); 1970 Oldsmobile Vista Cruiser (Liter: 7.5 & Engine(cc): 7456 & Engine(ci): 455 & Cylinder: 8 & Block: V & Bore(in): 4.13 & Bore(mm): 104.8 & Stroke(in): 4.25 & Stroke(mm): 108.0)
Features & Benefits
- Forged under 3,000 tons of force.
- Fully updated skirt profiles
- Exclusive DUROSHIELD(R) skirt coating. DUROSHIELD(R) provides scuff resistance, reduced bore clearances and enhanced ring sealing.
- SPEED-PRO(R) POWERFORGED(R) pistons are built to stringent specifications with a precision CNC-machined dome and skirts and microfinished ring grooves.
- The manufacturing process ensures that piston weights within a boxed set will not vary more than 4 grams and that skirt sizes are matched to within 0.016mm (0.0006") per set.
- Machined valve reliefs and circlip grooves; LR-63 lock rings for floated applications
Product Attributes
Oversized | No |
Top Compression Ring Thickness | 0.0781 IN |
Second Compression Ring Thickness | 0.0781 IN |
Oil Ring Thickness | 0.1875 IN |
Assembly Lubricant Included | No |
Bore Diameter | 4.125 IN |
Piston Material | POWERFORGED(R) |
9607 | 1.735 IN |
Dome Volume CC | -18.0 |
Head Illustration | 18 |
Head Type | .142 dish; DUROSHIELD skirt coated piston |
Lock Ring | N/R |
Minimum Clearance | .0030 |
Part Description | Engine Piston |
Pin Diameter (Inch) | 0.980 |
Pin Type | P |
Pin Weight Gram | 187 |
Standard Size | Standard |
Weight W Pin Gram | 861 |
Weight w/o Pin Gram | 674 |
Additional Information
Country of Origin (Primary) | IN |
Canadian Harmonizing Tariff Code | 8409910010 |
Harmonized Tariff Code (HTS) | 8409915085 |
UPC | 00087674708982 |
Part Interchanges
Fits Vehicles
- Oldsmobile F85 (1970)
- Oldsmobile Cutlass (1970)
- Oldsmobile Delta 88 (1968-1970)
- Oldsmobile Vista Cruiser (1970)
- Oldsmobile Toronado (1968-1970)
- Oldsmobile Delmont 88 (1968)
- Oldsmobile 442 (1968-1970)
- Oldsmobile 98 (1968-1970)
