Name: Sealed Power 5020P Sealed Power 5020P Engine Connecting Rod Bearing
SKU: 5020p
Price: 28.99 USD
Availability: InStock

SEALED POWER part description

California Proposition 65 Warning

WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)

Product Description

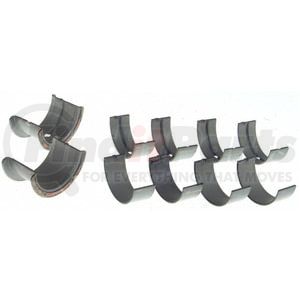

Engine Connecting Rod Bearing

Features & Benefits

Steel-backed bronze alloy lining with overplate
Popular for fatigue resistance & strength
Provides conformability required for older apps
Our standard material is comparable to competitors performance bearing
Note - This material offers less resistance to wear & corrosion than other materials.
Utilizes ISO & QS certified manufacturing

Product Attributes

Design Feature 1	Standard Size
Housing Bore Max (inch)	2.8744 IN
Housing Bore Max (mm)	73.0100 MM
Housing Bore Min (inch)	2.8735 IN
Housing Bore Min (mm)	72.9870 MM
Oil Clearance Max (inch)	0.0035 IN
Oil Clearance Max (mm)	0.0890 MM
Oil Clearance Min (inch)	0.0006 IN
Oil Clearance Min (mm)	0.0150 MM
Overall Length Max (inch)	0.8310 IN
Overall Length Max (mm)	21.1100 MM
Part Description	Engine Connecting Rod Bearing
Standard Shaft Max (inch)	2.7170 IN
Standard Shaft Max (mm)	69.0120 MM
Standard Shaft Min (inch)	2.7165 IN
Standard Shaft Min (mm)	68.9990 MM
Wall Thickness Max (inch)	0.0780 IN
Wall Thickness Max (mm)	1.9810 MM

Additional Information

Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8483300022
Harmonized Tariff Code (Schedule B)	8483308090
Harmonized Tariff Code (HTS)	8483308090
UPC	00614046852051
