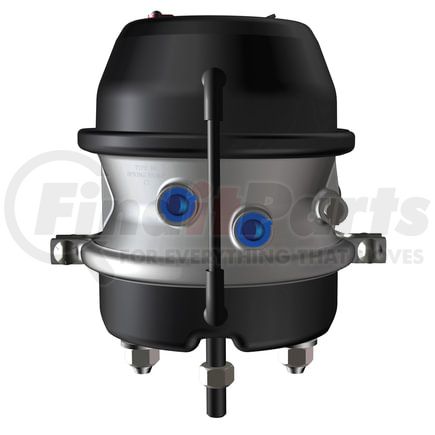

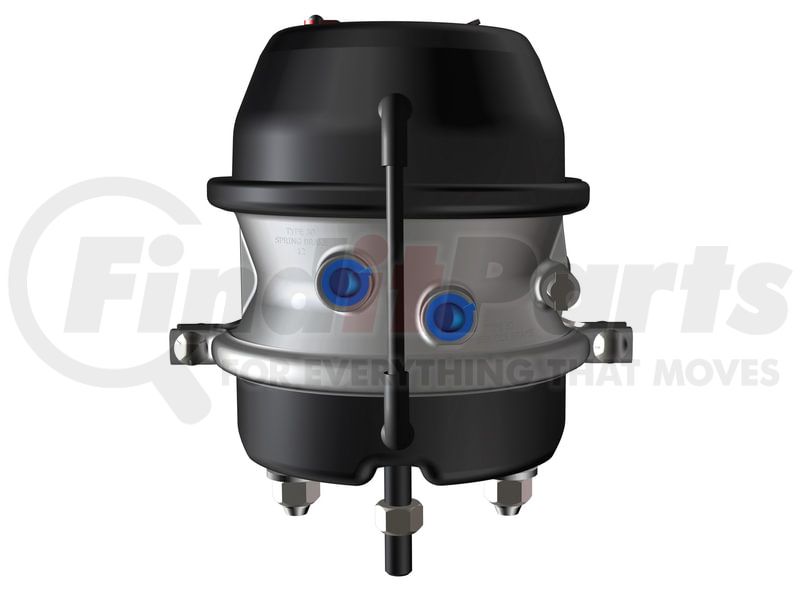

MGM BRAKES part description

Specifications


Aftermarket Unit
Mounting Bolt Thread: 5/8-11
Mounting Bolt Length (in.): 1.660
Port Size: 3/8-18 NPTF
Stroke (in.): 3.00



Service Size: 36
Spring Size: 36



Features & Benefits

  • Tamper Resistant Design
  • Molded Nitrile Rubber Push-Rod Air Seal
  • Center Hole Shield
  • Externally Stored Release Bolt
  • Epoxy-Coated Head, Non-Pressure Chamber and Lower Push-Rod Assembly
  • 360 Aluminum Center Case
  • "Long Life" Power Spring
  • Epoxy Coated Return Spring
  • Weatherseal Plug
  • Heavy-Duty Steel Non-Pressure Chamber (8-Gauge Standard on Type 3030 & 3060 Aftermarket Models) (6-Gauge Standard on Type 36 Models)
  • Stroke Alert
  • Polymer Push-Rod Guides
  • Heavy-Duty Nylon Reinforced Diaphragms
  • Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
  • External Breather Tube
  • Composite Guide -Corrosion Fighter Technology, Type 30 Spring Side Models Only

Model: TR3636T

Technical Data

Stroke 3.00" (76.2 mm)
Weight lb (kg) Combination 30.8 lb (14.0 kg)
Weight lb (kg) Single 20.2 lb (9.2 kg)
A 11.13" (282.7 mm)
B 8.38" (212.9 mm)
C 9.25" (235.0 mm)
D 9.18" (233.2 mm)
E 4.75" (120.7 mm)
F 5/8" - 11 UNC
G 5/8" - 18 UNF
Inlets 3/8" - 18 NPTF
X - Min. (aftermarket unit only) 8.00" (203.2 mm)

Replacement Parts

1 Kit -NP Chamber (a) 9015150
2 Kit -Nuts & Bolts 9003001
3 Clamp Band Assembly 8216036
4 Diaprhagm 8017836
5 Kit -Push-Rod Assembly (a) SAE 9064004
5a Kit -Push-Rod Assembly (a) METRIC 9064009
6 Return Spring 8068012
7 Kit -Center Hole Shield 9065002
8 NP Chamber Assembly (a) 9015108
9 Kit -Nuts & Washers SAE 9002001
9a Kit -Nuts & Washers METRIC 9002002
10 Hex Nut -Yoke SAE 8130004
10a Hex Nut -Yoke METRIC 8130016
11 Kit -Weatherseal Plug 9019006
12 Kit -Release Bolt 9007009
13 Kit -Breather Tube 9081001
14 Kit -Piggyback Plus SAE 3436008
*NOTE: (a)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units.
