GATES part description

Product Description

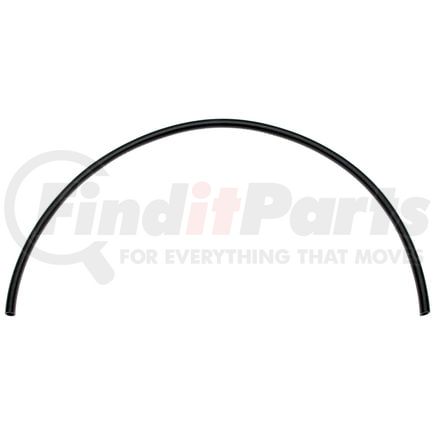

PolarSeal II Hose

Features & Benefits

  • Exceptional resistance to refrigerant permeation
  • Black Chloroprene rubber tube inside a nylon barrier, reinforced with one layer of braided polyester and a Chlorobutyl cover
  • Cover is heat, moisture and ozone resistant
  • Meets or exceeds SAE J3062 Type C, Class I
  • Compatible for use with numerous vehicular AC refrigerants and oils
  • Temperature Range: -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C)
  • Note: Gates recommends always pairing Gates PolarSeal hose and couplings
  • Note: For a complete listing of PolarSeal Hose and Couplings, see Gates.com and/or Gates Hydraulic Catalog 431-2080

Product Attributes

Product Type PolarSeal II Hose
Industrial Description 12ACC-PSIIX50FT
Type Fleet Application & Maintenance Hose
Hose Pressure Description Medium Pressure
Maximum Working Pressure 350 PS
Burst Pressure 1400 PS
Temperature Rating -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C)
Length 50 FT
9941 12
Inside Diameter .625 IN
Outside Diameter .96 IN
9879 3 IN
Tube Description Black, Synthetic Elastomeric Rubber
Hose Material Elastomeric Rubber
Reinforcement Material Fabric Braid
Cover Material Synthetic Elastomeric Rubber
Cover Type Heat, Moisture & Ozone Resistant
Cover Color Black
9925 Nylon Liner
9856 PolarSeal II Couplings
9453 J3062
9954 N/A
9953 N/A

Additional Information

Harmonized Tariff Code (Schedule B) 4009310000
Country of Origin (Primary) US
UPC 00770075443841
VMRS Code 059032029
UNSPSC 40142000
