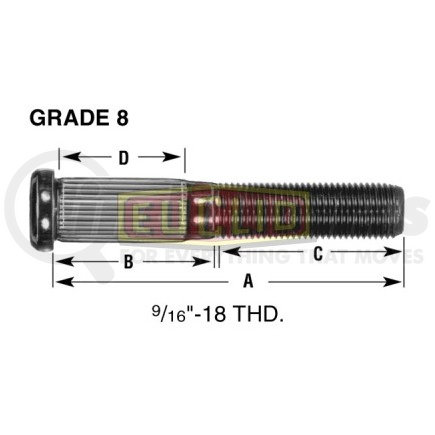

EUCLID part description

Body Diameter 0.608 in.
Body Length 1.06 in.
Grade 8
Head Diameter 1.12 in.
Head Style Round
Head Thickness 0.31 in.
Length from Under Head 3 1/2 in.
Metric Thread Size 9/16-18 UNF-2A
OEM GMC 334386
Serration Serrated
Serration Diameter 0.625 in.
Serration Length 0.81 in.
Thread 9/16/2018
Thread Diameter 0.56 in.
Thread Direction RH
Thread Length 1.69 in.
Threads per Inch 18
Type Headed
VMRS Code 018-003-009

Product Description

STUD

Product Attributes

Body Diameter 0.608 in.
Body Length 1.06 in.
Brand Euclid
Grade 8
Head Diameter 1.12 in.
Head Style Round
Head Thickness 0.31 in.
Length From Under Head 3 1/2 in.
Metric Thread Size 9/16-18 UNF-2A
OEM GMC 334386
Pallet Quantity 550
Serration Serrated
Serration Diameter 0.625 in.
Serration Length 0.81 in.
Thread 9/16"-18
Thread Diameter 0.56 in.
Thread Direction RH
Thread Length 1.69 in.
Threads Per Inch 18
Type Headed
Weight .34

EUCLID E-8964 Cross Reference

We have 5 alternatives for the E-8964 by EUCLID:

Euclid® is a world leader in the production of precision-engineered replacement parts for buses, trailers, as well as light-, medium- and heavy-duty trucks. This brand takes great pride in its products that meet and even exceed O.E.M. quality standards. Officially a part of Meritor since January 1999, Euclid remains the same despite all the changes the company has been through. When customers receive Euclid products, they know they are getting far more than ordinary replacement parts. Instead, they are getting the best replacement parts made today from a company they can trust. Euclid is a company that's continuously improving with technology to do a job the right way because it is the only way it knows how.
