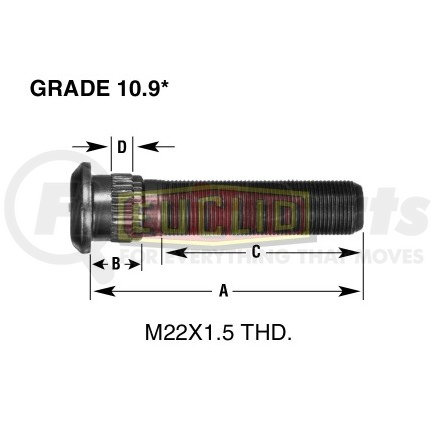

EUCLID part description

Body Diameter 0.975 in.
Body Length 0.69 in.
Grade 10.9
Head Diameter 1.31 in.
Head Style Round
Head Thickness 0.31 in.
Length from Under Head 2 29/32 in.
Metric Thread Size M22 X 1.5-6g
OEM Webb 101191
Serration Serrated
Serration Diameter 1.015 in.
Serration Length 0.38 in.
Thread M22 x 1.5
Thread Diameter 22.0 mm
Thread Length 1.59 in.
Threads per Inch 1.5 per mm
Type Headed
VMRS Code 018-003-009
Wheel End Thread Direction RH

Product Description

STUD

Product Attributes

Body Diameter 0.975 in.
Body Length 0.69 in.
Brand Euclid
Grade 10.9
Head Diameter 1.31 in.
Head Style Round
Head Thickness 0.31 in.
Length From Under Head 2 29/32 in.
Metric Thread Size M22 X 1.5-6g
OEM Webb 101191
Pallet Quantity 1000
Serration Serrated
Serration Diameter 1.015 in.
Serration Length 0.38 in.
Thread M22 x 1.5
Thread Diameter 22.0 mm
Thread Length 1.59 in.
Threads Per Inch 1.5 per mm
Type Headed
Weight .60
Wheel End Thread Direction RH

EUCLID E-10242 Cross Reference

We have 1 alternatives for the E-10242 by EUCLID:

Euclid® is a world leader in the production of precision-engineered replacement parts for buses, trailers, as well as light-, medium- and heavy-duty trucks. This brand takes great pride in its products that meet and even exceed O.E.M. quality standards. Officially a part of Meritor since January 1999, Euclid remains the same despite all the changes the company has been through. When customers receive Euclid products, they know they are getting far more than ordinary replacement parts. Instead, they are getting the best replacement parts made today from a company they can trust. Euclid is a company that's continuously improving with technology to do a job the right way because it is the only way it knows how.
