GATES part description

Product Description

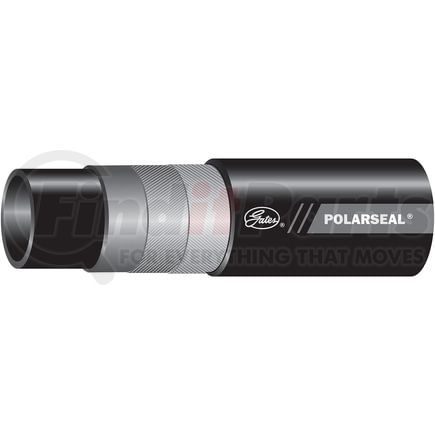

PolarSeal Hose

Features & Benefits

  • Black Chloroprene rubber tube inside a nylon barrier, reinforced with 2-layers of spiraled polyester and an EPDM cover
  • Compatible for use with R12 and R134a refrigerants, as well as mineral oils and PAG oils
  • Meets or exceeds SAE J3062 Type C, Class II and SAE J51, Type A2 Outside Diameters
  • Temperature Range: -22 Deg. F to +257 Deg. F (-30 Deg. C to +125 Deg. C)
  • Note: Gates recommends always pairing Gates PolarSeal hose and couplings
  • Note: For a complete listing of PolarSeal Hose and Couplings, see Gates.com and/or Gates Hydraulic Catalog 431-2080

Product Attributes

Product Type PolarSeal Hose
Industrial Description 6AC134AX25FT
Type Fleet Application & Maintenance Hose
Hose Pressure Description Medium Pressure
Maximum Working Pressure 500 PS
Burst Pressure 2000 PS
Temperature Rating -22 Deg. F to +257 Deg. F (-30 Deg. C to +125 Deg. C)
Length 25 FT
9941 6
Inside Diameter .3125 IN
Outside Diameter .75 IN
9879 2 IN
9835 24 INHG
Tube Description Black, Synthetic Rubber
Hose Material Neoprene - Type A
Reinforcement Material Two Layers of Spiral Polyester
Cover Material Synthetic Rubber (EPDM)
Cover Color Black
9925 Nylon Liner
9856 PolarSeal Couplings
9453 J51, J3062
9954 N/A
9953 N/A

Additional Information

Harmonized Tariff Code (Schedule B) 4009310000
Country of Origin (Primary) US
UPC 00072053109566
VMRS Code 059032029
UNSPSC 40142000
